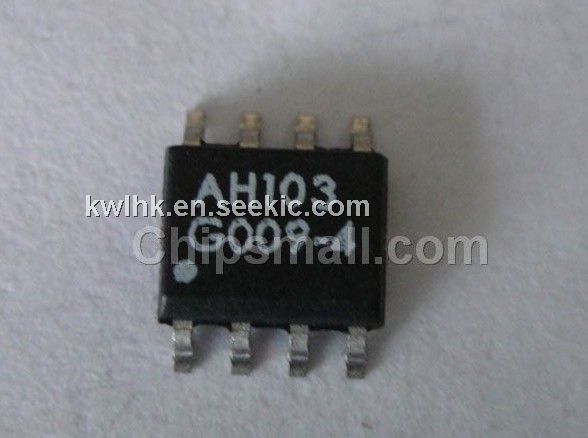

Product Summary
The AH103 is a high gain, high linearity 1/2-Watt amplifier. This device is comprised of two individual MMIC amplifiers internally and can be used with an external interstage match for any of the mobile infrastructure frequency bands. The dual-stage amplifier achieves up to +46 dBm IP3 performance with 28.5 dB gain. It can be used in (1)Mobile Infrastructure; (2)W-LAN / ISM / RFID; (3)MDS / MMDS Infrastructure.
Parametrics
AH103 absolute maximum ratings: (1)Operating Case Temperature: -40 to +85 °C; (2)Storage Temperature: -55 to +125 °C; (3)DC Voltage (pin 2): +6 V; (4)DC Voltage (pin 6, 7): +11 V; (5)RF Input Power (continuous): 4 dB above Input P1dB; (6)Junction Temperature: +220°C.
Features
AH103 features: (1)60-2700 MHz; (2)+27 dBm P1dB; (3)+46 dBm Output IP3; (4)28.5 dB Gain @ 900 MHz; (5)Excellent ACPR; (6)MTTF > 100 Years; (7)SOIC-8 Pkg w/ heat slug.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AH103 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
AH103A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
 |
AH103A-G |
TriQuint Semiconductor |
RF Amplifier 60-2700MHz 29dB Gain@900MHz |
Data Sheet |
|
|
||||||||||
 |

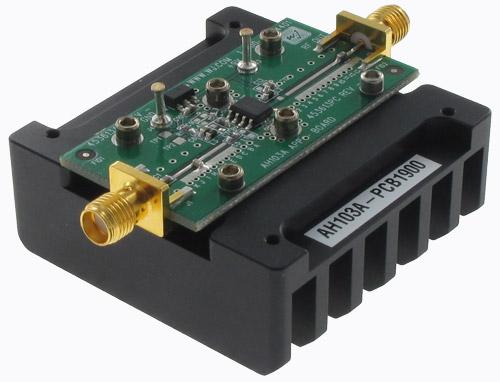

AH103A-PCB1900 |
TriQuint Semiconductor |
RF Development Tools 1900 MHz Eval Brd 25dB Gain |
Data Sheet |
|
|
||||||||||
 |

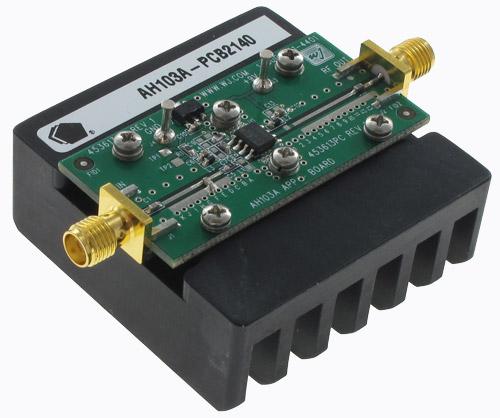

AH103A-PCB2140 |
TriQuint Semiconductor |
RF Development Tools 2140 MHz Eval Brd 25dB Gain |
Data Sheet |
|
|
||||||||||
 |

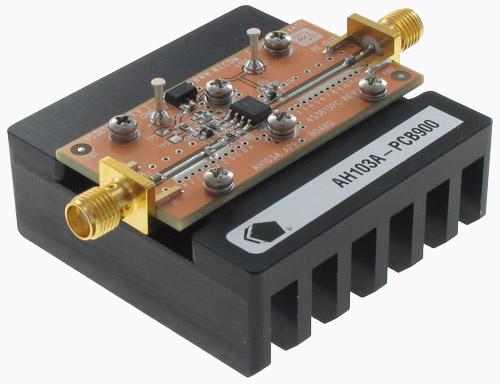

AH103A-PCB900 |
TriQuint Semiconductor |
RF Development Tools 900 MHz Eval Brd 29dB Gain |
Data Sheet |
|
|
||||||||||
