Product Summary
The M57729EL is a FM mobile radio.
Parametrics
M57729EL absolute maximum ratings: (1)VCC, supply voltage: 17V; (2)ICC, total current: 5A; (3)Pin(max), input power: 0.4W; (4)PO(max), output power: 20W; (5)TC(OP), operation case temperature: -30 to 110℃; (6)Tstg, storage temperature: -40 to 110℃.
Features
M57729EL features: (1)f, frequency range: 430 to 450MHz; (2)Po, output power: 13W; (3)nT, total efficiency: 35%; (4)Pin, input VSWR: 2.8.

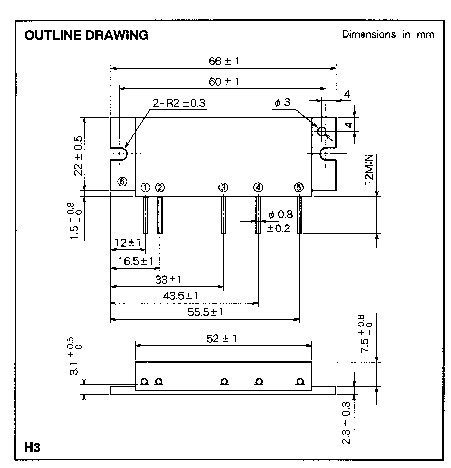

Diagrams
