Product Summary

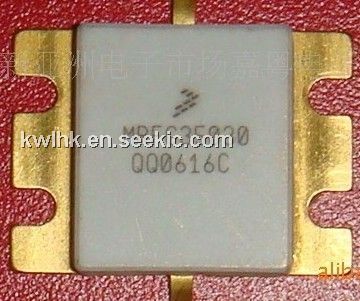

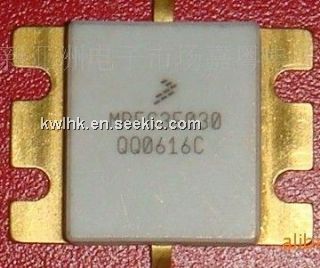

The MRFG35030 is a gallium arsenide PHEMT RF power field effect transistor.

Parametrics

MRFG35030 absolute maximum ratings: (1)Drain-Source Voltage: 15 Vdc; (2)Total Device Dissipation @ TC = 25°C: 79 W; (3)Total Device Dissipation @ Derate above 25°C: 0.53 W/°C; (4)Gate-Source Voltage: -5 Vdc; (5)RF Input Power: 37 dBm; (6)Storage Temperature Range: -40 to +175 °C; (7)Channel Temperature: 175 °C; (8)Operating Case Temperature Range: -20 to +90 °C.

Features

MRFG35030 features: (1)Typical Single-Carrier W-CDMA Performance: VDD = 12 Volts, IDQ = 650 mA, Pout = 3 Watts Avg., f = 3550 MHz, Channel Bandwidth = 3.84 MHz, Peak/Avg. = 8.5 dB @ 0.01% Probability on CCDF. Power Gain —12 dB; Drain Efficiency — 21%; ACPR @ 5 MHz Offset — -41 dBc @ 3.84 MHz Channel Bandwidth; (2)Internally Matched, Controlled Q, for Ease of Use; (3)High Gain, High Efficiency and High Linearity; (4)Excellent Thermal Stability; (5)In Tape and Reel. R5 Suffix = 50 Units per 56 mm, 13 inch Reel.

Diagrams

MRFG35030 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MRFG35030R5
MRFG35030R5

MOSFET RF 3550MHZ 30W 12V HF-600
Data Sheet
Negotiable
