Product Summary
The MW4IC2230NB is a RF LDMOS Wideband Integrated Power Amplifier. It is designed for W-CDMA base station applications. It uses Freescale’s newest High Voltage (26 to 28 Volts) LDMOS IC technology and integrates a multi - stage structure. The MW4IC2230NB’s wideband on-chip design makes it usable from 1600 to 2400 MHz. The linearity performances cover all modulations for cellular applications: GSM, GSM EDGE, TDMA, CDMA and W-CDMA.
Parametrics
MW4IC2230NB maximum ratings: (1)Drain-Source Voltage, VDSS: -0.5, +65 Vdc; (2)Gate-Source Voltage, VGS: -0.5, +8 Vdc; (3)Storage Temperature Range, Tstg: -65 to +175 ℃; (4)Operating Channel Temperature, TJ: 200 ℃; (5)Input Power, Pin: 20 dBm.
Features
MW4IC2230NB features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters; (2)On-Chip Matching (50 Ohm Input, DC Blocked, >5 Ohm Output); (3)Integrated Quiescent Current Temperature Compensation with Enable/Disable Function; (4)On-Chip Current Mirror gm Reference FET for Self Biasing Application; (5)Integrated ESD Protection; (6)200℃ Capable Plastic Package; (7)N Suffix Indicates Lead-Free Terminations. RoHS Compliant; (8)In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.

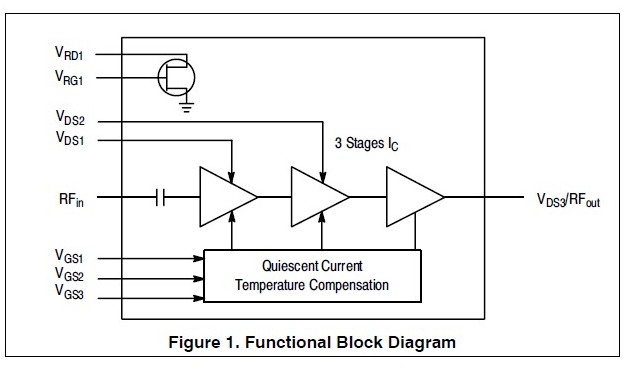

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
MW4IC2230NBR1 |
Freescale Semiconductor |
RF Amplifier 2.1GHZ 28V TO272WBN |
Data Sheet |
Negotiable |
|
|||||||
