Product Summary
The rfp25n05-50 is an 8K x 8 non-volatile static RAM and real time clock which is pin and functional compatible with the DS1643. The rfp25n05-50 easily fits into many ROM, EPROM,and EEPROM sockets, providing the non-volatility of PROMs without any requirement for special WRITE timing or limitations on the number of WRITEs that can be performed. The rfp25n05 is available in two special packages to provide a highly integrated battery backed-up memory and real time clock solution.
Parametrics
rfp25n05-50 absolute maximum ratings: (1) Ambient Operating Temperature TA: 0 to 70°C; (2) Storage Temperature (VCC Off, Oscillator Off) TSTG: -40 to 85°C; (3) Lead Solder Temperature for 10 seconds TSLD: 260°C; (4) Input or Output Voltages VIO: -0.3 to 7V; (5) Supply Voltage Vcc: -0.3 to 7V; (6) Output Current Io: 20mA; (7) Power Dissipation PD: 1W.
Features
rfp25n05-50 features: (1) 25A, 50V; (2) rDS (ON) =0.047Ω; (3) Temperature Compensating PSPICE Model; (4) Peak Current vs Pulse Width Curve; (5) UIS Rating Curve; (6) 175°C Operating Temperature; (7) Related Literature.

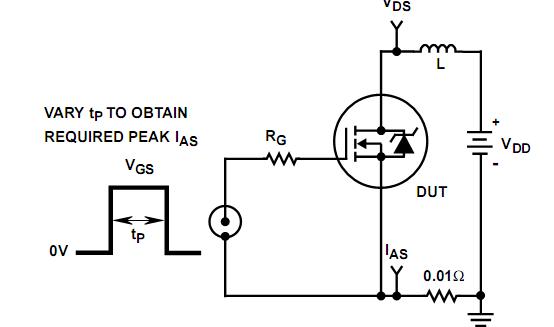

Diagrams
