Product Summary

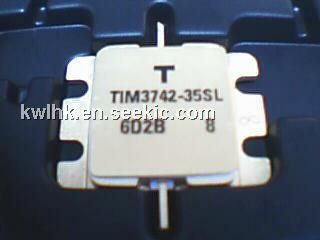

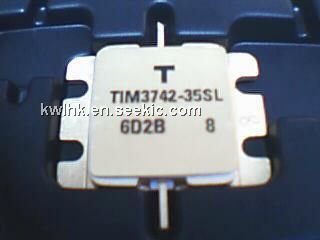

The TIM3742-35SL is a microwave power GaAs FET.
Parametrics
TIM3742-35SL absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 20A; (4)Total Power Dissipation (Tc= 25 °C)PT: 115.4W; (5)Channel Temperature Tch: 175°C; (6)Storage Tstg: -65 to +175°C.
Features
TIM3742-35SL features: (1)high power: P1dB=45.5dBm at 3.7GHz to 4.2GHz; (2)broad band internally matched fet; (3)high gain: G1dB=10.0dB at 3.7GHz to 4.2GHz; (4)hermetically sealed package.

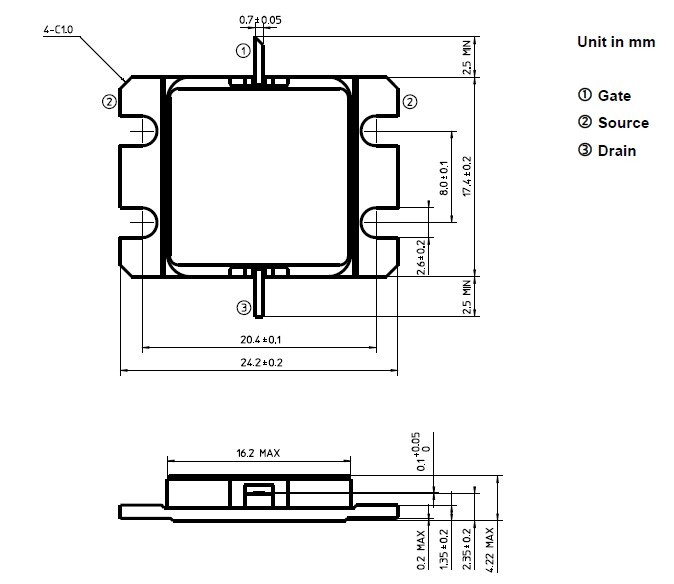

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM3742-35SL |
Other |
|
Data Sheet |
Negotiable |
|
||||
