Product Summary
The 1D1304-3 is a multistandard video decoder. The 1D1304-3 is ideal for balanced amplifiers and signal distribution and is an ideal solution for the ever increasing demands of the wireless industry for smaller printed circuit boards.
Parametrics
1D1304-3 absolute maximum ratings: (1)Frequency Narrow: 815 - 960 MHz; (2)Frequency Broad: 800 - 1200 MHz; (3)Isolation: 21 or 22 dB min; (4)Insert. Loss: 0.23 or 0.25 dB max; (5)VSWR: 1.18 or 1.20 Max:1; (6)Amp. Bal.: ±0.30 or ±0.40 dB max; (7)Phase Bal.: 3; (8)Power: 150 W.
Features
1D1304-3 features: (1)800 - 1200 MHz; (2)Low Loss; (3)High Isolation; (4)90°Quadrature; (5)Surface Mountable; (6)Tape And Reel; (7)Convenient Package; (8)100% Tested.

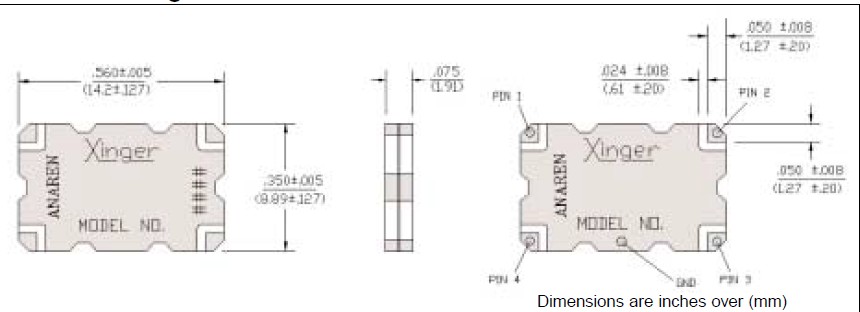

Diagrams
