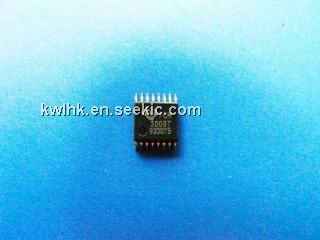

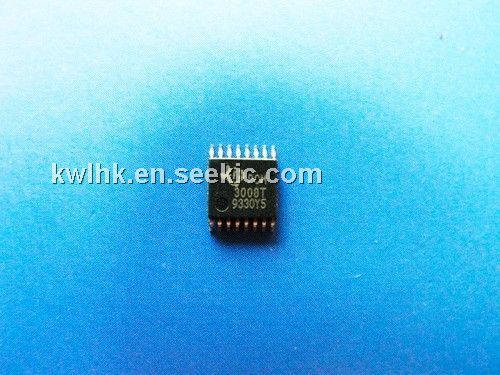

3008T

Product Summary

The 3008T is a low cost single chip 16-bit stereo audio codec with single-ended analog voltage input and output. The 3008T accepts left-justified format for ADC, and right-justified format for DAC. Independent power-down modes for ADC and DAC are provided. The 3008T is suitable for a wide variety of cost-sensitive consumer applications where good performance is required. It is fabricated using a highly advanced CMOS process and is available in a small 16-pin TSSOP package. The applications of the 3008T include Digital Video Camera, Portable MD Player and Other Portable System.

Parametrics

3008T absolute maximum ratings: (1)Supply voltage, VCC: 4 V; (2)Digital input voltage: DEM0, DEM1, DIN, LRCK, SYSCK, BCK, PDAL, PDDA:–0.3 V to 4 V; DOUT:–0.3 V to VCC +0.3 V; (3)Analog input voltage: –0.3 V to VCC +0.3 V; (4)Input current (any pins except supplies): ±10 mA; (5)Ambient temperature under bias: –40℃ to 125℃; (6)Storage temperature: –55℃ to 150℃; (7)Junction temperature: 150℃ ; (8)Lead temperature (soldering): 260℃, 5 s; (9)Package temperature (IR reflow, peak): 235℃, 10 s.

Features

3008T features: (1)16-Bit Delta-Sigma ADC and DAC; (2)Stereo ADC: Single-Ended Voltage Input; Anti-Aliasing Filter Included; High Performance; THD+N:–84dB; SNR: 88dB; Dynamic Range: 88dB; 1/64× Decimation Digital Filter; Passband Ripple: ±0.05 dB; Stopband Attenuation: 65dB; Digital HPF Included; (3)Stereo DAC: Single-Ended Voltage Output; Analog LPF and FIR Filter Included; High Performance; THD+N:–88dB; SNR: 92dB; Dynamic Range: 92 dB; 8× Oversampling Digital Filter; Passband Ripple:±0.1 dB; Stopband Attenuation:–43 dB; (4)Audio Data Format: ADC: 16-bit, Left-Justified; DAC: 16-bit, Right-Justified; (5)Special Built-In Functions: Digital De-Emphasis: 32, 44.1, 48 kHz; ADC/DAC Independent Power Down With Pop-Noise Free Muting; (6)Sampling Rate: 8 kHz to 48 kHz; (7)System Clock: 256fS, 384fS, 512fS; (8)Low Voltage Power Supply: 2.4 V TYP, 2.1 V MIN to 3.6 V MAX; (9)Low Power Dissipation: 32 mW at VCC = 2.4 V; (10)Package: 16-Pin TSSOP.

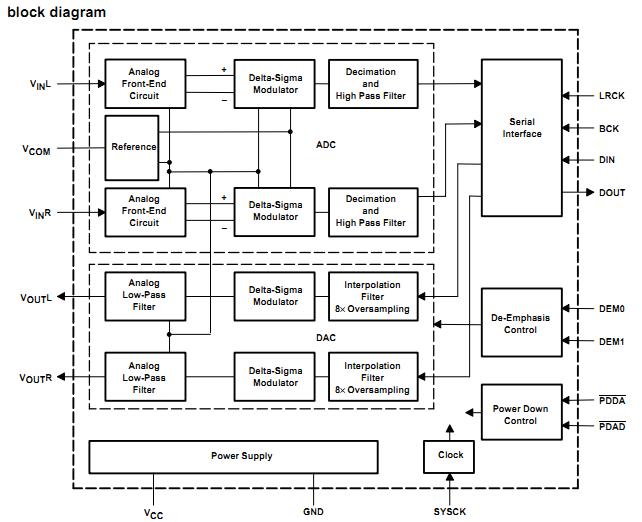

Diagrams
