Product Summary

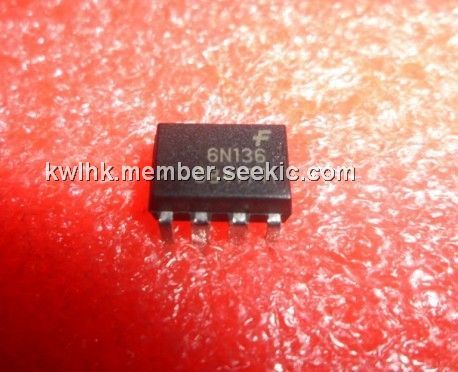

The 6N136 optocoupler consists of an AlGaAs LED optically coupledto a high speed photodetector transistor.
A separate connection for the bias of the photodiode improvesthe speed by several orders of magnitude over conventionalphototransistor optocouplers by reducing the base-collectorcapacitance of the input transistor.
Parametrics
The absolute maximum ratings of 6N136 are
(1)Storage Temperature TSTG:-55 to +125°C;
(2)Operating Temperature TOPR:-55 to +100°C;
(3)Lead Solder Temperature TSOL: 260 for 10 sec°C
Features
The features of 6N136 can be summarized as
(1)High speed-1 MBit/s;
(2)Superior CMR-10 kV/μs;
(3)Dual-Channel HCPL-2530/HCPL-2531;
(4)Double working voltage-480V RMS;
(5)CTR guaranteed 0-70°C;
(6)U.L. recognized (File # E90700)
Diagrams
<DIV><IMG alt="6N136 Pin Configuration" src="http://www.seekic.com/uploadfile/ic-mfg/201276203314604.jpg" border=0></DIV>
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 6N136 |
Vishay Semiconductors |
High Speed Optocouplers HS Phototransistor |
Data Sheet |
|
|
||||||||||||||||||||||
 |
6N136#020 |
Avago Technologies |
High Speed Optocouplers 1 Mb/s 5000Vrms |
Data Sheet |
|
|
||||||||||||||||||||||
|
6N136#060 |
Avago Technologies |
High Speed Optocouplers 1 Mb/s 3750Vrms |
Data Sheet |
|
|
||||||||||||||||||||||
|
6N136#300 |
Avago Technologies |
High Speed Optocouplers 1 Mb/s 3750Vrms |
Data Sheet |
|
|
||||||||||||||||||||||
|
6N136#320 |
Avago Technologies |
High Speed Optocouplers 1 Mb/s 5000Vrms |
Data Sheet |
|
|
||||||||||||||||||||||
|
6N136#500 |
Avago Technologies |
High Speed Optocouplers 1 Mb/s 3750Vrms |
Data Sheet |
|
|
||||||||||||||||||||||
|
6N136#520 |
Avago Technologies |
High Speed Optocouplers 1 Mb/s 5000Vrms |
Data Sheet |
|
|
||||||||||||||||||||||
 |
6N136(F) |
|
PHOTOCOUPLER HS TRANS-OUT 8DIP |
Data Sheet |
|
|
||||||||||||||||||||||
