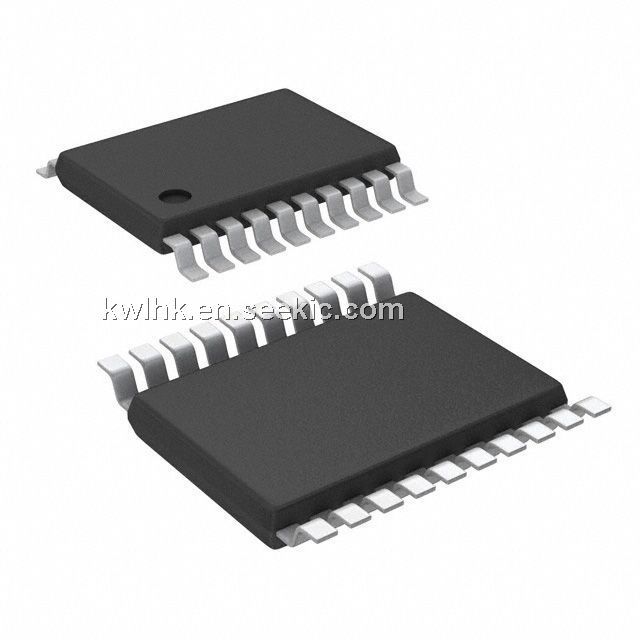

Product Summary
The 74ABT273AD has eight edge-triggered D-type flip-flops within dividual D inputs and Q outputs. The common buffered Clock (CP)and Master Reset (MR) inputs load and reset (clear) all flip-flopssimultaneously.
Parametrics
74ABT273AD absolute maximum ratings: (1)VCC DC supply voltage: -0.5 to +7.0 V; (2)IIK DC input diode current VI < 0: -18 mA; (3)VI DC input voltage3: -1.2 to +7.0 V; (4)IOK DC output diode current VO < 0: -50 mA; (5)VOUT DC output voltage3 output in Off or High state: -0.5 to +5.5 V; (6)IOUT DC output current output in Low state: 40 mA.
Features
74ABT273AD features: (1)Eight edge-triggered D-type flip-flops; (2)Buffered common clock; (3)Buffered asynchronous Master Reset; (4)Power-up reset; (5)See 74ABT377 for clock enable version; (6)See 74ABT373 for transparent latch version; (7)See 74ABT374 for 3-State version; (8)ESD protection exceeds 2000 V per Mil Std 833 Method 3015 and 200 V per machine model.

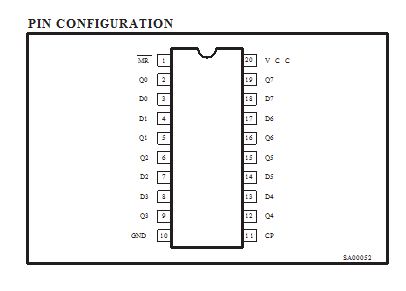

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 74ABT273AD |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D-TYPE |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() 74ABT273AD,112 |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D-TYPE |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 74ABT273AD,118 |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D-TYPE |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 74ABT273ADB,118 |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D-TYPE |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 74ABT273ADB,112 |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D-TYPE |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() 74ABT273ADB |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D-TYPE |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() 74ABT273ADB-T |
![]() NXP Semiconductors |
![]() Flip Flops OCTAL D-TYPE |
![]() Data Sheet |
![]() Negotiable |
|
