74AVC1T45

dual supply transceiver, SOT23-6, -0.5 to +4.6 V, 100 mA, 250 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~20.00

PartNumber:: 74AVC1T45

Brand:: NXP Semiconductors - nxp | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-08

From Other Seller

Part Number:74AVC1T45
US $0.01 - 20.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

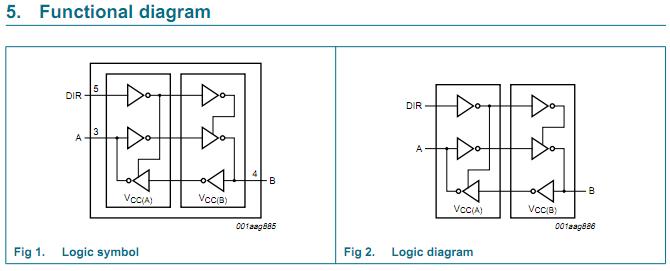

The 74AVC1T45 is a single bit, dual supply transceiver with 3-state output that enables bidirectional level translation. The 74AVC1T45 features one data input-output port (A and B), a direction control input (DIR) and dual supply pins (VCC(A) and VCC(B)). Both VCC(A) and VCC(B) can be supplied at any voltage between 0.8 V and 3.6 V making the 74AVC1T45 suitable for translating between any of the low voltage nodes (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V). Pins A and DIR are referenced to VCC(A) and pin B is referenced to VCC(B). A HIGH on DIR allows transmission from A to B and a LOW on DIR allows transmission from B to A.

Parametrics

74AVC1T45 absolute maximum ratings: (1)VCC(A), supply voltage: -0.5 to +4.6 V; (2)VCC(B), supply voltage: -0.5 to +4.6 V; (3)IIK, input clamping current: -50 mA; (4)VI, input voltage: -0.5 to +4.6 V; (5)IOK, output clamping current: -50 mA; (6)VO, output voltage Active mode: -0.5 to VCCO + 0.5 V; (7)Suspend or 3-state mode: -0.5 to +4.6 V; (8)IO, output current: ±50 mA; (9)ICC, supply current: 100 mA; (10)IGND, ground current: -100 mA; (11)Tstg, storage temperature: -65 to +150℃; (12)P, total power dissipation: 250 mW.

Features

74AVC1T45 features: (1)Wide supply voltage range: VCC(A): 0.8 V to 3.6 V; VCC(B): 0.8 V to 3.6 V; (2)High noise immunity; (3)Complies with JEDEC standards; (4)ESD protection; (5)Suspend mode; (6)Latch-up performance exceeds 100 mA per JESD 78 Class II; (7)Inputs accept voltages up to 3.6 V; (8)Low noise overshoot and undershoot < 10 % of VCC; (9)IOFF circuitry provides partial Power-down mode operation; (10)Multiple package options; (11)Specified from -40 to +85℃ and -40 to +125℃.
