74HC32

74HC32, CMOS devices, 7.0 v, 500 mw, 25 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.38~0.47 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.47 / Piece
500 ~ 1000 :	0.42 / Piece
1000 ~ 1500 :	0.38 / Piece

PartNumber:: 74HC32

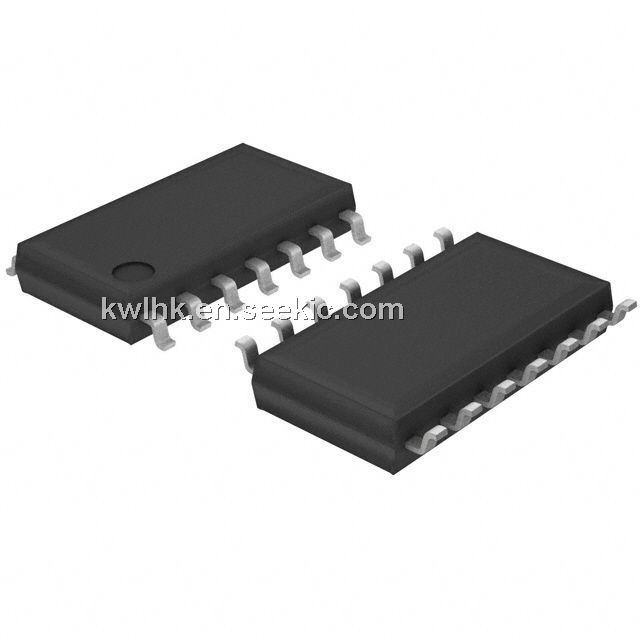

Brand:: NEC - Nec | Pack: SOP | D/C: 00+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-16

From Other Seller

Part Number:74HC32
US $0.38 - 0.47
IC 74HC32D,653

US $0.06 - 0.10 / Piece
(0) Remove
74HC32N

US $0.32 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

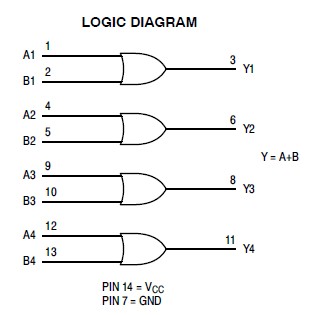

The 74HC32 is a high-speed Si-gate CMOS devices and is pin compatible with low power Schottky TTL(LSTTL). It is specified in compliance with JEDECstandard no. 7A.The 74HC/HCT32 provide the 2-input OR function.

Parametrics

74HC32 maximum ratings: (1)VCC, DC Supply Voltage: –0.5 to + 7.0 v ; (2)Vin, DC Input Voltage: –0.5 to + 7.0 V ; (3)Vout, DC Output Voltage: –0.5 to VCC + 0.5 v; (4)Iin, DC Input Current ,per Pin: –20 mA ; (5)Iout, DC Output Current, per Pin: ±25 mA ; (6)Icc, DC Supply Current, VCC and GND Pins: ±50 mA ; (7)PD, Power Dissipation in Still Air: Plastic DIP: 750 mw; SOIC Package: 500 mw; TSSOP Package: 450 mw; (8)Tstg, Storage Temperature: –65 to + 150 ℃ ; (9)TL, Lead Temperature,1 mm from Case for 10 seconds Plastic DIP,SOIC or Tssop Package: 260 ℃.

Features

74HC32 features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1A; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With the JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 48 FETs or 12 Equivalent Gates; (8)Pb-Free Packages are Available.
