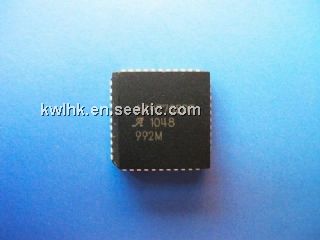

A3977SEDT

Product Summary

The A3977SEDT is a complete microstepping motor driver, with builtin translator. It is designed to operate bipolar stepper motors in full-, half-, quarter-, and eighth-step modes, with output drive capability of 35 V and ±2.5 A. The A3977SEDT includes a fixed off-time current regulator that has the ability to operate in slow-, fast-, or mixed-decay modes. This current-decay control scheme results in reduced audible motor noise, increased step accuracy, and reduced power dissipation. The translator is the key to the easy implementation of the A3977SEDT. Simply inputting one pulse on the STEP input drives the motor one step (two logic inputs determine if it is a full-, half-, quarter-, or eighth-step). There are no phase-sequence tables, high-frequency control lines, or complex interfaces to program. The A3977SEDT interface is an ideal fit for applications where a complex microprocessor is unavailable or over-burdened. Internal synchronous-rectification control circuitry is provided to improve power dissipation during PWM operation. Internal circuit protection includes thermal shutdown with hysteresis, undervoltage lockout (UVLO) and crossover-current protection. Special power-up sequencing is not required. The A3977SEDT is supplied in a choice of two power packages, a 44-pin plastic PLCC with 3 internally-fused pins on each of four sides (suffix ED), and a thin (<1.2 mm), 28-pin TSSOP with an exposed thermal pad (suffix LP). Both packages are lead (Pb) free, with 100% matte tin leadframe plating.

Parametrics

A3977SEDT absolute maximum ratings:(1)Load Supply Voltage, VBB: 35V; (2)Logic Supply Voltage, VDD 7.0V; (3)Logic Input Voltage Range, VIN, Pulsed, tw > 30 ns –0.3 to VDD+0.3V; (4)Logic Input Voltage Range, VIN, Pulsed, tw < 30 ns –1.0 to VDD+ 1V; (5)Reference Voltage, VREF: VDD V; (6)Sense Voltage (DC), VSENSE: 0.5V; (7)Output Current, IOUT: ±2.5 A; (8)Operating Ambient Temperature, TA: –40 to 125℃; (9)Operating Ambient Temperature, TA: –20 to 85℃; (10)Maximum Junction Temperature, TJ(max): 150℃; (11)Storage Temperature, Tstg: –55 to 150℃.

Features

A3977SEDT features: (1)±2.5 A, 35 V output rating; (2)Low rDS(on) outputs, 0.45 Ω source, 0.36 Ω sink typical; (3)Automatic current decay mode detection/selection; (4)3.0 to 5.5 V logic supply voltage range; (5)Mixed, fast, and slow current decay modes; (6)Home output; (7)Synchronous rectification for low power dissipation; (8)Internal UVLO and thermal shutdown circuitry; (9)Crossover-current protection.

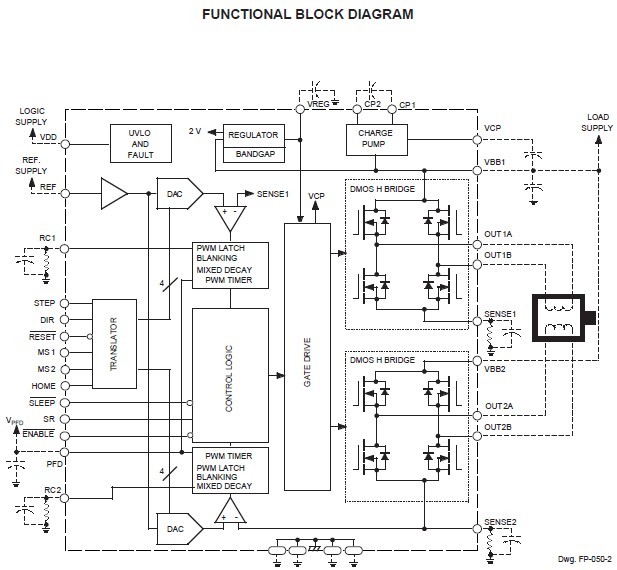

Diagrams
