Product Summary

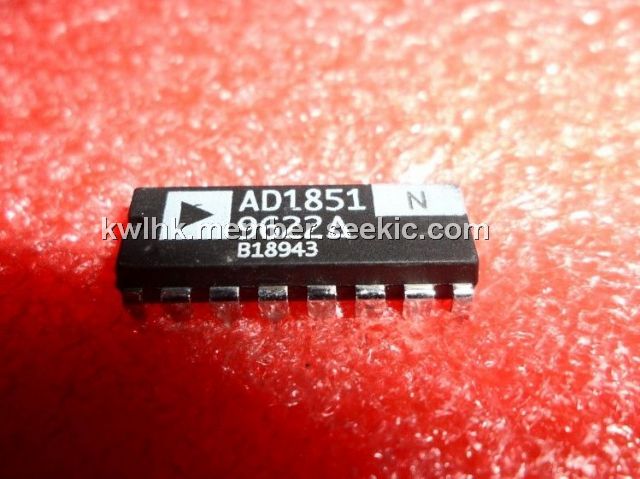

The AD1851N is a monolithic PCM audio DAC. It is a 16-bit device. The device provides a voltage output amplifier, DAC, serial-to-parallel register and voltage reference. The digital portion of the AD1851N is fabricated with CMOS logic elements that are provided by Analog Devices’2 mm ABCMOS process. The analog portion of the device is fabricated with bipolar and MOS devices as well as thin-film resistors. The applications of the AD1851N include high-end compact disc players, digital audio amplifiers, dat recorders and players, synthesizers and keyboards.
Parametrics
AD1851N absolute maximum ratings: (1)VL to DGND: 0 V to 6.50 V; (2)VS to AGND: 0 V to 6.50 V; (3)-VS to AGND: -6.50 V to 0 V; (4)Digital Inputs to DGND: 0.3 V to VL; (5)AGND to DGND: ±0.3 V; (6)Short Circuit: Indefinite Short to Ground; (7)Soldering: +300℃, 10 sec; (8)Storage Temperature: -60℃ to +100℃.
Features
AD1851N features: (1)110 dB SNR; (2)Fast settling permits 163 oversampling; (3)63 V Output; (4)Optional trim allows super-linear performance; (5)65 V Operation; (6)16-pin plastic DIP and SOIC packages; (7)Pin-compatible with AD1856 & AD1860 audio DACs; (8)2s complement, serial input.
Diagrams
