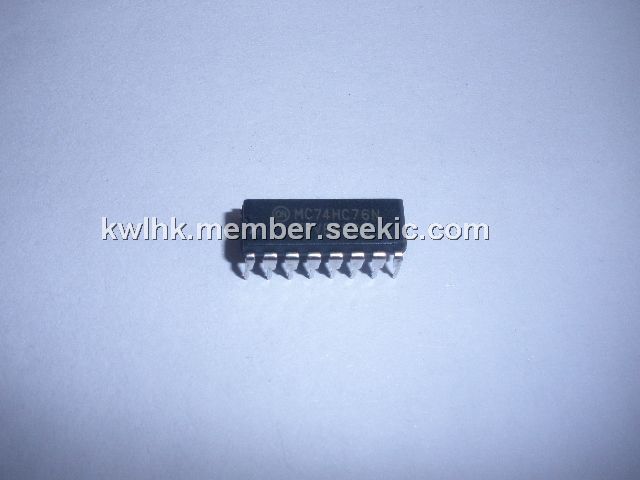

MC74HC76N

Dual JK flip-flop with set and reset, DIP, -0.5 to + 7.0 V, High Noise Immunity, 750 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~50.00

PartNumber:: MC74HC76N

Brand:: ON Semiconductor - ON | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-07

From Other Seller

Part Number:MC74HC76N
US $0.10 - 50.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC74HC76N is a Dual JK flip-flop with set and reset. The MC74HC76N is identical in pinout to the LS76. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. Each flip–flop is negative–edge clocked and has active–low asynchronous Set and Reset inputs. The MC74HC76N is identical in function to the HC112, but has a different pinout.

Parametrics

MC74HC76N absolute maximum ratings: (1)DC Supply Voltage (Referenced to GND): -0.5 to + 7.0 V; (2)DC Input Voltage (Referenced to GND): -0.5 to VCC + 0.5 V; (3)DC Output Voltage (Referenced to GND): -0.5 to VCC + 0.5 V; (4)DC Input Current, per Pin: ±20 mA; (5)DC Output Current, per Pin: ±25 mA; (6)DC Supply Current, VCC and GND Pins: ±50 mA; (7)Power Dissipation in Still Air, Plastic DIP: SOIC Packag: 750 mW, TSSOP Packag: 500 mW; (8)Storage Temperature: -65 to + 150 ℃; (9)Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP, SOIC or TSSOP Package): 260 ℃.

Features

MC74HC76N features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS, and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1.0 mA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance with the Requirements Defined by JEDEC Standard No. 7A; (7)Chip Complexity: 128 FETs or 32 Equivalent Gates.
