Product Summary
The AD6437BS is a complete chipset. Itadds trellis coding, ATM (UTOPIA 2) interface, and new framing modes for improved long reach performance. By incorporating all required components, including controller, analog front-end, driver/receiver and software, it significantly reduces system development time and risk. The same chipset is used for CO (central office) and RT (remote terminal) applications.
Parametrics
AD6437BS absolute maximum ratings: (1)Downstream: 12 Mbps; (2)Serial Mode Jitter: 28 ns; (3)ADSL Overhead, Normal Framing Mode Downstream: 192 kbps; (4)ADSL Overhead, Normal Framing Mode Duplex: 96 kbps; (5)Max Symbols/Bin: 16 bit; (6)Bin Width: 4.3125 kHz; (7)US TX Power: 12 dBm; (8)Interleaved Channel: <20 ms.
Features
AD6437BS features: (1)Complete chipset for DMT based Asymmetric Digital Subscriber Loop (ADSL); (2)Designed to ANSI T1.413 Issue 2, ETSI TR238, and ITU G.dmt and G.lite standards; (3)Performance of >11Mbps or reach of >20,000 ft; (4)Trellis code; (5)Flexible bin assignment: supports ADSL over ISDN (as per ETSI TM6 and ITU Annex B), enhanced upstream or symmetric rates; (6)Normal and reduced overhead framing modes; (7)ATM (UTOPIA 1 and 2) and STM interfaces; (8)Complete software control protocol stack/API; (9)Complete data-pump in five compact ICs; (10)Power 2.3 W (excluding driver and signal)-CO: 3.9 W including AD8016 line driver， RT: 2.8 W including AD8017 driver; (11)-40 to +85°C operation.

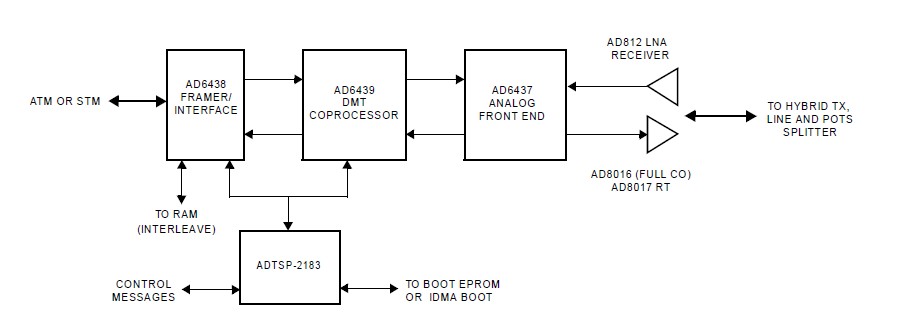

Diagrams
