Product Summary
The AD6438-2BS is an ATM Interface and Framer. It inserts ATM cells into an ADSL line, with functions that correspond to the Transmission Convergence (TC) sublayer in the BISDN protocol reference model (per ITU-T I.432 and T1.413 Issue 2). Also it interfaces an ADSL modem to an external system, at either CO (Central Office) or RT (Remote Terminal) modem, using a standard UTOPIA 1- or 2-port (byte-wide, Cell or Byte Mode).
Parametrics
AD6438-2BS absolute maximum ratings: (1)Absolute Maximum Serial Data Rate (Downstream): 8 Mbps; (2)Absolute Maximum Serial Data Rate (Upstream): 1 Mbps; (3)Operating Temperature (TAMB):–40°C to +85°C Typ; (4)Storage Temperature Range:–65°C to +150°C Typ; (5)Absolute Maximum 2 Lead Temperature LQFP Typical: 280°C; (6)Weight: 1.3 g Typ; (7)US TX Power: 12 dBm; (8)Interleaved Channel: <20 ms.
Features
AD6438-2BS features: (1)Component in Analog Devices AD20msp918 ADSL Chipset; (2)Suitable for CO (Central Office) or Residence (ATU-R and ATU-C); (3)Designed to ANSI T1.413 Issue 2, ETSI TR238, ITU G.992.1 and G.992.2 Standards; (4)ATM Operation and Functionality as Defined by Issue 2; (5)ATM Mode and ADSL Forum; (6)Optional Serial Interface to Access the PMD Sublayer; (7)Available on the AD6438-2, Not Available on the AD6438; (8)UTOPIA Level 1 and Level 2 Physical Interface; (9)Byte-Parallel or “Multi-PHY” for Dual Latency; (10)Implements Both Issue 1 and Issue 2 ADSL Framing; (11)Structure (Reduced Overhead); (12)144-Lead LQFP.

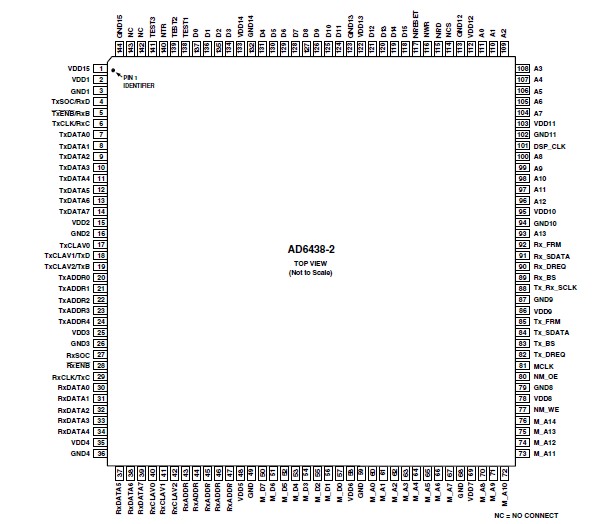

Diagrams
