Product Summary
The AD7775BJR is an lc2 mos complete embedded servo front end for HDD. The AD7775BJR provides all the functionality necessary to implement the servo demodulator and head positioning tasks in embedded servo system.A power-down mode which turns all the linear circuity OFF enhances the use of the AD7775BJR in portable systems.
Parametrics
AD7775BJR absolute maximum ratings: (1)Vcc to AGND orDGND: -0.3v, 7v; (2)AGND to DGND: -0.3v, Vcc+0.3v; (3)digital inputs to DGND: -0.3v, Vcc+0.3v; (4)digital onputs to DGND: -0.3v, Vcc+0.3v; (5)analog inputs to AGND: -0.3v, Vcc+0.3v; (6)analog onputs to AGND: -0.3v, Vcc+0.3v; (7)operating temperature range: 0 to 70℃; (8)junction temperature: 150℃; (9)storage temperature range: -65 to 150℃; (10)power dissipation, SOIC: 1W; θJA thermal impedance: 75℃/w; lead temperature: 300℃; (11)power dissipation, TSOP: 750mW; θJA thermal impedance: 80℃/w; lead temperature: 235℃.
Features
AD7775BJR features: (1)10-Bit 3us ADC; (2)+5 V Only; (3)two DACs with output amplifier: one 10 bit, 4us settling DAC; one 8 bit, 3us settling DAC; (4)fully integrated burst demodulator; (5)Fast Interface Port; (6)Power-Down Mode; (7)fast inteface port; (8)28-pin SOIC package.

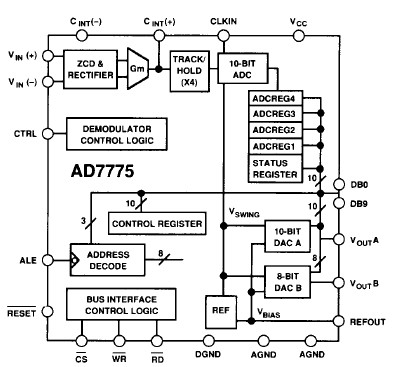

Diagrams
