AD780SQ/883B

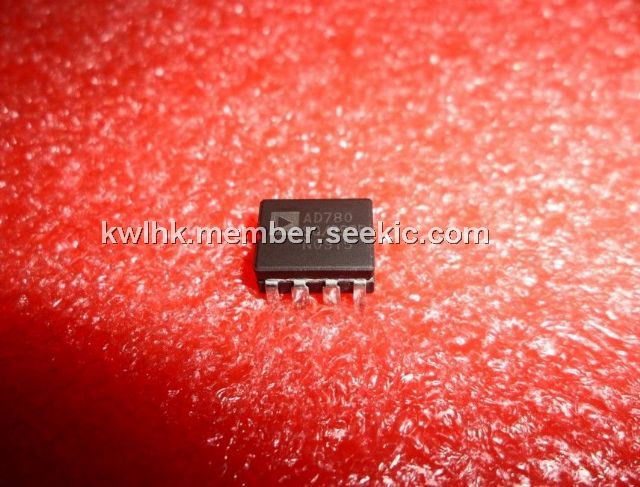

AD780SQ/883B, CDIP, 2.5V or 3.0V, 10mA, ultrahigh precision bandgap reference voltage, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~50.00

PartNumber:: AD780SQ/883B

Brand:: Analog Devices - ADI | Pack: CDIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-09

From Other Seller

Part Number:AD780SQ/883B
US $0.01 - 50.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD780SQ/883B is an ultrahigh precision bandgap reference voltage which provides a 2.5 V or 3.0 V output from inputs between 4.0 V and 36 V. Low initial error and temperature drift combined with low output noise and the ability to drive any value of capacitance make the AD780SQ/883B the ideal choice for enhancing the performance of high resolution ADCs and DACs and for any general purpose precision reference application. A unique low headroom design facilitates a 3.0 V output from a 5.0 V ± 10% input, providing a 20% boost to the dynamic range of an ADC, over performance with existing 2.5 V references. The AD780SQ/883B can be used to source or sink up to 10 mA and can be used in series or shunt mode, thus allowing positive or negative output voltages without external components.

Parametrics

AD780SQ/883B absolute maximum ratings: (1)VIN to Ground: 36 V; (2)Trim Pin to Ground: 36 V; (3)Temp Pin to Ground: 36 V; (4)Power Dissipation (25℃): 500 mW; (5)Storage Temperature: -65℃ to +150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Output Protection: Output safe for indefinite short to ground; (8)and momentary short to VIN.; (9)ESD Classification: Class 1 (1000 V).
