AD7849CR

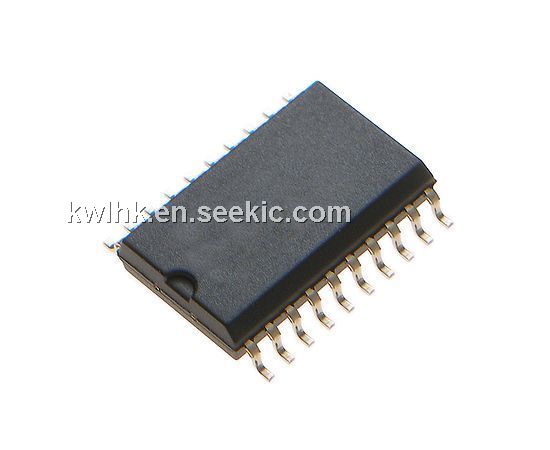

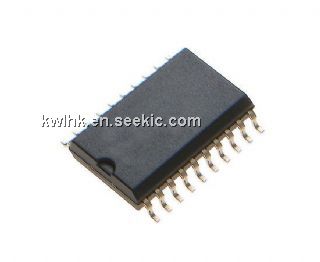

AD7849CR, input multiplying DAC, 4.6 V, 10 MΩ, 25 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.01~3.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.35 / Piece
500 ~ 1000 :	3.19 / Piece
1000 ~ 1500 :	3.01 / Piece

PartNumber:: AD7849CR

Brand:: Analog Devices - AD | Pack: SOP | D/C: 00+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-18

From Other Seller

Part Number:AD7849CR
US $3.01 - 3.35
Quantity:

piece

Product Summary

The AD7849CR is a 14-bit/16-bit serial input multiplying DAC. The AD7849CR architecture ensures excellent differential linearity performance, and monotonicity is guaranteed to 14 bits for the A grade and to 16 bits for all other grades over the specified temperature ranges. During power-up and power-down sequences (when the supply voltages are changing), the VOUT pin is clamped to 0 V via a low impedance path. To prevent the output of A3 being shorted to 0 V during this time, transmission gate G1 is also opened. The AD7849CR has a versatile serial interface structure and can be controlled over three lines to facilitate opto-isolator applications. SDOUT is the output of the on-chip shift register and can be used in a daisy-chain fashion to program devices in the multichannel system. The DCEN (Daisy Chain Enable) input controls this function. Applications are (1)Industrial Process Control; (2)PC Analog I/O Boards; (3)Instrumentation.

Parametrics

AD7849CR absolute maximum ratings: (1)Supply Voltage: -0.3 V to +4.6 V; (2)Input Voltage: -0.5 V to VDD + 0.5 V; (3)Output Voltage Swing: -0.5 V to VDD + 0.5 V; (4)Operating Temperature Range (Ambient): -40° C to +85°C; (5)Storage Temperature Range: -65°C to +150°C; (6)Lead Temperature (5 sec)TQFP: +280°C.

Features

AD7849CR features: (1)14-Bit/16-Bit Multiplying DAC; (2)Guaranteed Monotonicity; (3)Output Control on Power-Up and Power-Down Internal or External Control; (4)Versatile Serial Interface; (5)DAC Clears to 0 V in Both Unipolar and Bipolar Output Ranges.
