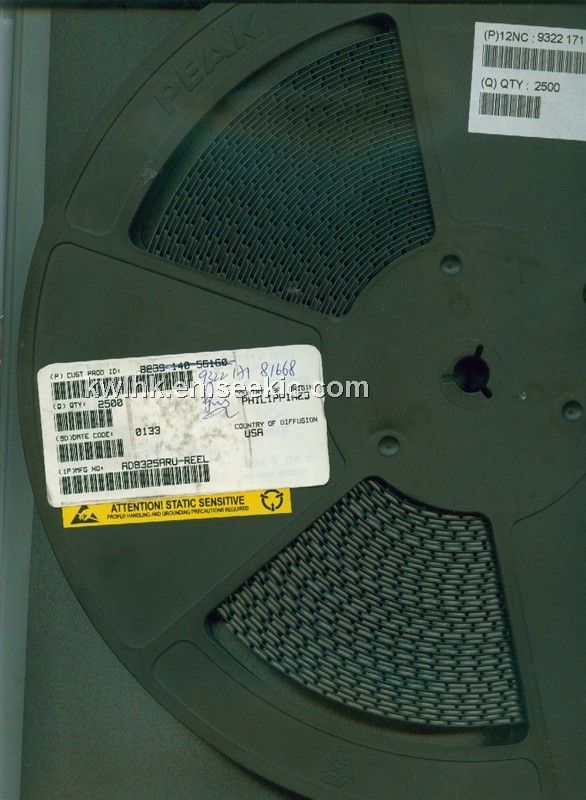

AD8325ARU-REEL

AD8325ARU-REEL, variable gain amplifier, 59.45 dB, 6 V, 21 MHz, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.95~3.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.25 / Piece
500 ~ 1000 :	2.10 / Piece
1000 ~ 1500 :	0.95 / Piece

PartNumber:: AD8325ARU-REEL

Brand:: Analog Devices Inc - ADI | Pack: TSSOP | D/C: 08+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-25

From Other Seller

Part Number:AD8325ARU-REEL
US $0.95 - 3.25
Quantity:

piece

Product Summary

The AD8325ARU-REEL is a low-cost, digitally controlled, variable gain amplifier optimized for coaxial line driving applications such as cable modems that are designed to the MCNS-DOCSIS upstream standard. An 8-bit serial word determines the desired output gain over a 59.45 dB range resulting in gain changes of 0.7526 dB/LSB. Applications are (1)DOCSIS high-speed data modems; (2)Interactive cable set-top boxes; (3)PC plug-in cable modems; (4)General-purpose digitally controlled variable gain block.

Parametrics

AD8325ARU-REEL absolute maximum ratings: (1)Supply Voltage +VS Pins 5, 9, 10, 19, 20, 23, 27: 6 V; (2)Input Voltages Pins 25, 26: ±0.5 V; (3)Input Voltages Pins 1, 2, 3, 6, 7: –0.8 V to +5.5 V; (4)Internal Power Dissipation TSSOP: 0.9 W; (5)Operating Temperature Range: –40°C to +85°C; (6)Storage Temperature Range: –65°C to +150°C; (7)Lead Temperature, Soldering 60 seconds: 300°C.

Features

AD8325ARU-REEL features: (1)Supports DOCSIS Standard for Reverse Path Transmission; (2)Gain Programmable in 0.75 dB Steps Over a 59.45 dB Range; (3)Low Distortion at 61 dBmV Output –57 dBc SFDR at 21 MHz; (4)Output Noise Level –48 dBmV in 160 kHz; (5)Maintains 75 Ω Output Impedance Transmit Enable and Transmit Disable Modes; (6)Upper Bandwidth: 100 MHz (Full Gain Range); (7)5 V Supply Operation; (8)Supports SPI Interfaces.
