AD9816JS

AD9816JS, analog signal processor, 6.5 V, 420 mW, MQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.82~5.16 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	5.16 / Piece
500 ~ 1000 :	4.99 / Piece
1000 ~ 1500 :	4.82 / Piece

PartNumber:: AD9816JS

Brand:: Analog Devices - AD | Pack: QFP | D/C: 98+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-18

From Other Seller

Part Number:AD9816JS
US $4.82 - 5.16
Quantity:

piece

Product Summary

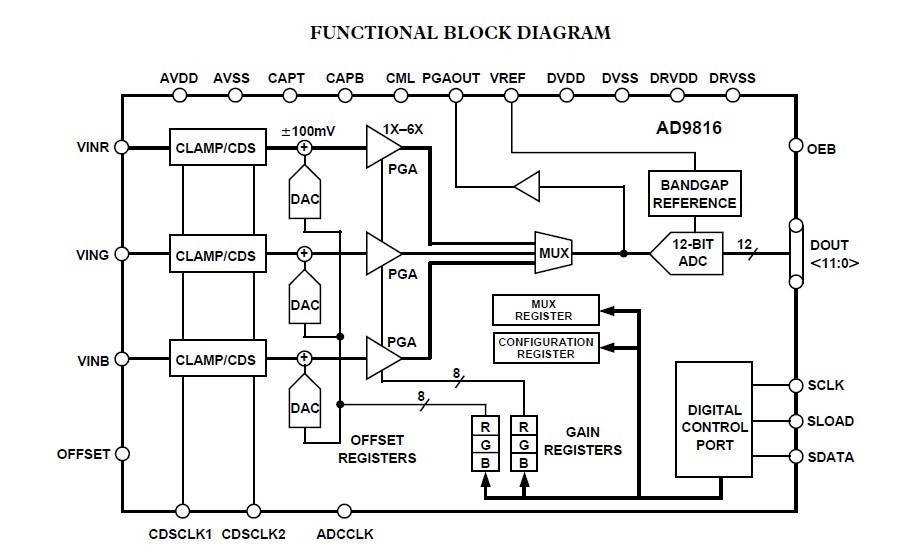

The AD9816JS is a complete analog signal processor for CCD and CIS applications. Included is all the necessary circuitry to perform three-channel conditioning and sampling for a variety of imaging applications. The signal chain consists of an input clamp, correlated double sampler (CDS), offset adjust DAC, programmable gain amplifier and a 12-bit A/D converter. The AD9816JS may be disabled for CIS applications. The internal registers are programmed using a 3-wire serial interface and provide adjustment of the gain, offset and operating mode. The AD9816JS operates from a +5 V supply, typically consumes 420 mW of power and is packaged in a 44-lead MQFP.

Parametrics

AD9816JS absolute maximum ratings: (1)VIN, VREF AVSS: -0.3 to AVDD + 0.3 V; (2)PGA Outputs AVSS: -0.3 to AVDD + 0.3 V; (3)Clock Inputs DVSS: -0.3 to DVDD + 0.3 V; (4)AVDD AVSS: -0.5 to +6.5 V; (5)DVDD DVSS: -0.5 to +6.5 V; (6)DRVDD DRVSS: -0.5 to +6.5 V; (7)AVSS DVSS: -0.3 to +0.3 V; (8)Digital Outputs DRVSS: -0.3 to DRVDD + 0.3 V; (9)Digital Inputs DVSS: -0.3 to DVDD + 0.3 V; (10)Junction Temperature: +150 °C; (11)Storage Temperature: -65 to +150 °C; (12)Lead Temperature (10 sec)+300 °C.

Features

AD9816JS features: (1)12-Bit 6 MSPS A/D Converter; (2)No Missing Codes Guaranteed; (3)3-Channel or 1-Channel Operation; (4)Correlated Double Sampling; (5)8-Bit Programmable Gain; (6)8-Bit Offset Adjustment; (7)PGA Output Monitor; (8)Input Clamp Circuitry; (9)Internal Voltage Reference; (10)3-Wire Serial Interface; (11)+3.3 V/+5 V Digital Output Compatibility; (12)44-Lead MQFP Package; (13)Low Power CMOS: 420 mW Typ.
