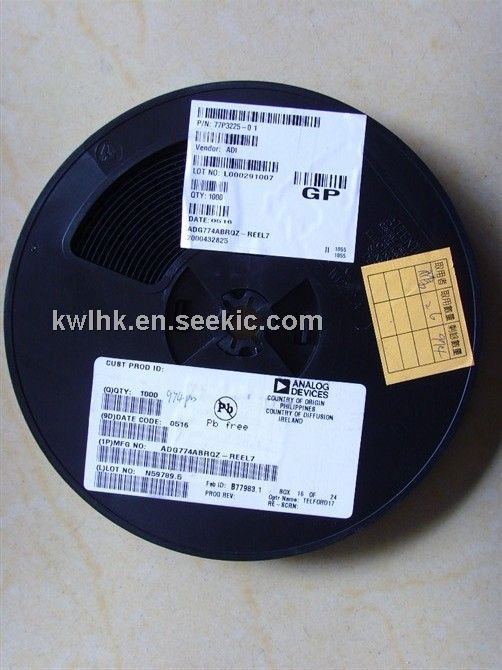

ADG774ABRQZ-REEL7

ADG774ABRQZ-REEL7, monolithic CMOS device, 6 V, 30 mA, 400 MHz, 1 nA, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.99~3.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.15 / Piece
500 ~ 1000 :	2.12 / Piece
1000 ~ 1500 :	0.99 / Piece

PartNumber:: ADG774ABRQZ-REEL7

Brand:: Analog Devices Inc - ADI | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-25

From Other Seller

Part Number:ADG774ABRQZ-REEL7
US $0.99 - 3.15
Quantity:

piece

Product Summary

The ADG774ABRQZ-REEL7 is a monolithic CMOS device comprising four 2:1 multiplexer/demultiplexers with high impedance outputs. The ADG774ABRQZ-REEL7 provides low power dissipation yet offers high switching speed and low on resistance. The on resistance variation is typically less than 0.5 Ω over the input signal range. The bandwidth of the ADG774ABRQZ-REEL7 is typically 400 MHz and this, coupled with low distortion (typically 0.3%), makes the part suitable for switching of high speed data signals.

Parametrics

ADG774ABRQZ-REEL7 absolute maximum ratings: (1)VDD to GND: －0.3 V to +6 V; (2)Analog, Digital Inputs1: －0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first; (3)Continuous Current, S or D: 100 mA; (4)Peak Current, S or D: 300 mA (pulsed at 1 ms, 10% duty cycle max); (5)Storage Temperature Range: －65℃to +150℃; (6)Junction Temperature: 150℃.

Features

ADG774ABRQZ-REEL7 features: (1)Bandwidth: >400 MHz; (2)Low insertion loss and on resistance: 2.2 Ω typical; (3)On resistance flatness: 0.3 Ω typical; (4)Single 3 V/5 V supply operation; (5)Very low distortion: <0.3%; (6)Low quiescent supply current: 1 nA typical .
