ADM8660AR

ADM8660AR, CMOS switched-capacitor voltage converter, >2000 V, 625 mW, +7.5 V, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.47~5.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	5.65 / Piece
101 ~ 500 :	4.58 / Piece
501 ~ 1000 :	3.47 / Piece

PartNumber:: ADM8660AR

Brand:: Analog Devices - AD | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-12

From Other Seller

Part Number:ADM8660AR
US $3.47 - 5.65
Quantity:

piece

Product Summary

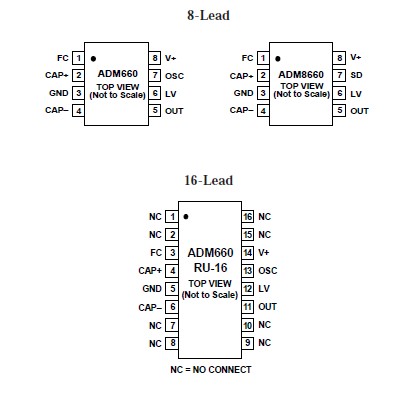

The ADM8660AR is a CMOS switched-capacitor voltage converter. It can be used in (1)handheld instruments; (2)portable computers; (3)remote data acquisition; (4)op amp power supplies. This device features a low power shutdown (SD) pin instead of the external oscillator (OSC) pin. This can be used to disable the device and reduce the quiescent current to 300 nA.In applications where a higher supply voltage is desired it is possible to use it to double the input voltage.

Parametrics

ADM8660AR absolute maximum ratings: (1)Input Voltage (V+ to GND, GND to OUT): +7.5 V; (2)LV Input Voltage: (OUT – 0.3 V) to (V+, +0.3 V); (3)OUT, V+ Output Current (Continuous): 120 mA; (4)Output Short Circuit Duration to GND: 10 secs; (5)Power Dissipation, N-8: 625 mW; (6)ESD Rating: >2000 V; (7)Lead Temperature Range (Soldering 10 sec): +300°C; (8)Operating Temperature Range Industrial (A Version):–40°C to +85°C.

Features

ADM8660AR features: (1)Inverts or Doubles Input Supply Voltage; (2)Inverts Input Supply Voltage; (3)100 mA Output Current; (4)Shutdown Function; (5)2.2 μF or 10 μF Capacitors; (6)0.3 V Drop at 30 mA Load; (7)+1.5 V to +7 V Supply; (8)Low Power CMOS: 600 mA Quiescent Current; (9)Selectable Charge Pump Frequency (25 kHz/120 kHz); (10)Pin Compatible Upgrade for MAX660, MAX665, ICL7660; (11)Available in 16-Lead TSSOP Package.
