Product Summary
The ADT7484AARMZ-RL is a simple digital temperature sensor for use in PC applications with a Simple Serial Transport (SST) interface. The ADT7484AARMZ-RL can monitor their own temperature as well as the temperature of one (ADT7484A) or two (ADT7486A) remote sensor diodes. The ADT7484AARMZ-RL is controlled by a single SST bidirectional data line. The devices are fixed-address SST clients where the target address is chosen by the state of the two address pins, ADD0 and ADD1. It is ideal for: (1)Personal Computers; (2)Portable Personal Devices; (3)Industrial Sensor Nets.
Parametrics
ADT7484AARMZ-RL absolute maximum ratings: (1)Supply Voltage (VCC): 3.6 V; (2)Voltage on Any Other Pin (Including SST Pin): 3.6 V; (3)Input Current at Any Pin: ±5.0 mA; (4)Package Input Current: ±20 mA; (5)Maximum Junction Temperature (TJ max): 150 °C; (6)Storage Temperature Range: 65 to +150 °C; (7)Lead Temperature, Soldering Lead Temperature, Soldering (10 sec): 300 °C; (8)ESD Rating: 1500 V.
Features
ADT7484AARMZ-RL features: (1)1 On-Chip Temperature Sensor; (2)1 or 2 Remote Temperature Sensors; (3)Simple Serial Transport (SST)Interface Rev 1 Compliant; (4)These are Pb−Free Devices.

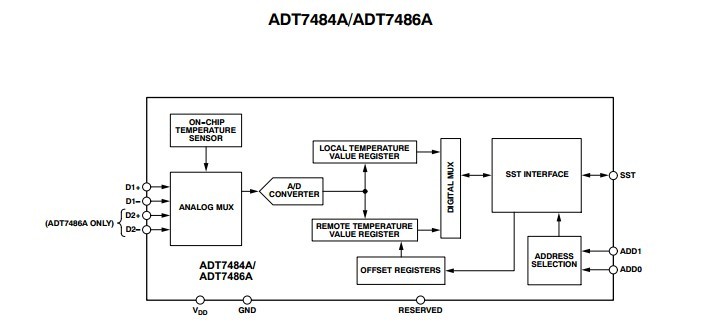

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

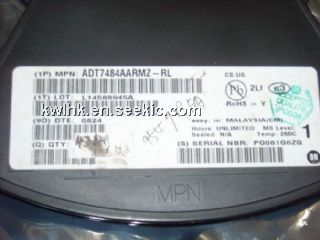

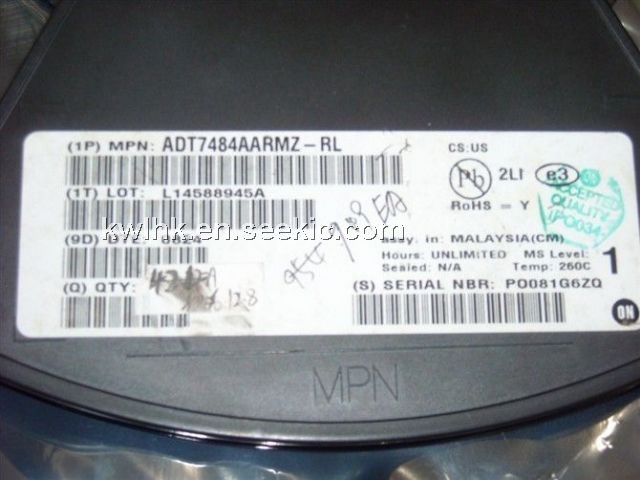

![]() ADT7484AARMZ-RL |
![]() ON Semiconductor |
![]() Board Mount Temperature Sensors DIGITAL TEMP SENSOR W/SST INTERFACE |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||
