Product Summary

The ADV7176AKS is an integrated digital video encoder that converts Digital CCIR-601 4:2:2 8 or 16-bit component video data into a standard analog baseband television signal compatible with worldwide standards. The 4:2:2 YUV video data is interpolated to two times the pixel rate. The color-difference components (UV) of the ADV7176AKS are quadrature modulated using a subcarrier frequency generated by an on-chip 32-bit digital synthesizer (also running at two times the pixel rate). The two times pixel rate sampling allows for better signal-tonoise- ratio. A 32-bit DDS with a 10-bit look-up table produces a superior subcarrier in terms of both frequency and phase. In addition to the composite output signal, there is the facility to output S-Video (Y/C) video, YUV or RGB video. The Y/C, YUV or RGB format is simultaneously available at the analog outputs with the composite video signal.

Parametrics

ADV7176AKS absolute maximum ratings: (1)VAA to GND: 7 V; (2)Voltage on Any Digital Input Pin. GND: – 0.5 V to VAA + 0.5 V; (3)Storage Temperature (TS): –65°C to +150°C; (4)Junction Temperature (TJ): +150°C; (5)Lead Temperature (Soldering, 10 secs): +260°C; (6)Analog Outputs to GND: GND – 0.5 to VAA.

Features

ADV7176AKS features: (1)ITU-R BT601/656 YCrCb to PAL/NTSC Video Encoder; (2)High Quality 10-Bit Video DACs; (3)Integral Nonlinearity <1 LSB at 10 Bits; (4)NTSC-M, PAL-M/N, PAL-B/D/G/H/I; (5)Single 27 MHz Clock Required (32 Oversampling); (6)80 dB Video SNR; (7)32-Bit Direct Digital Synthesizer for Color Subcarrier; (8)Individual ON/OFF Control of Each DAC; (9)CCIR and Square Pixel Operation; (10)Integrated Subcarrier Locking to External Video Source; (11)Color Signal Control/Burst Signal Control; (12)Interlaced/Noninterlaced Operation; (13)Complete On-Chip Video Timing Generator; (14)Programmable Multimode Master/Slave Operation; (15)Macrovision Antitaping Rev 7.01 (ADV7175A Only); (16)Closed Captioning Support; (17)Teletext Insertion Port (PAL-WST); (18)Onboard Color Bar Generation; (19)Onboard Voltage Reference; (20)2-Wire Serial MPU Interface (I2C Compatible); (21)Single Supply +5 V or + 3 V Operation; (22)Small 44-Lead PQFP Thermally Enhanced Package.

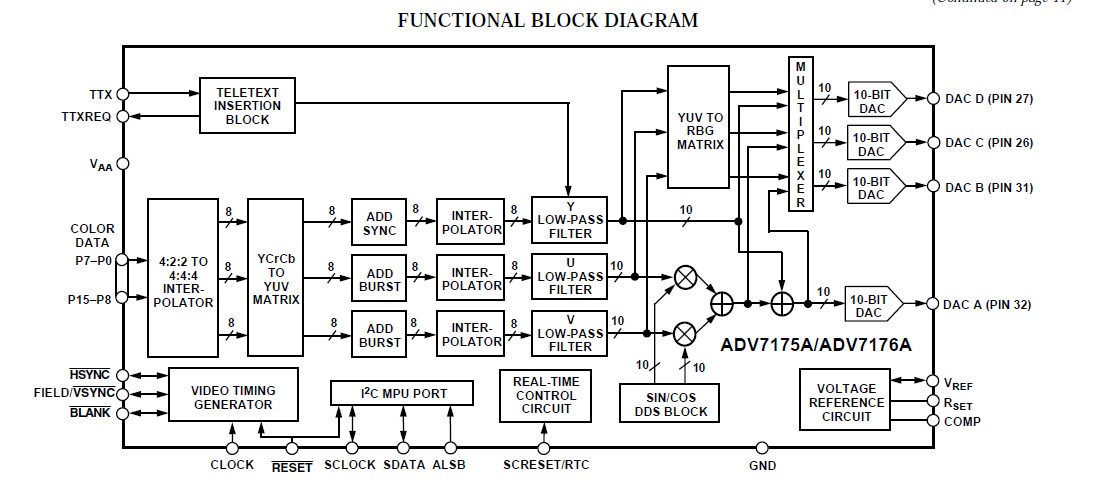

Diagrams

ADV7176AKS pin connection
