Product Summary

The AG604-89G is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 900 MHz, the AG604-89 typically provides 21 dB of gain, +33.5 dBm OIP3, and +19.5 dBm P1dB. The AG604-89G combines dependable performance with consistent quality to maintain MTTF values exceeding 1000 years at mounting temperatures of +85°C and is housed in a lead-free/green/RoHS-compliant SOT-89 industry-standard SMT package. Applications of the AG604-89G include: mobile infrastructure, CATV/FTTX, W-lan/ISM, RFID and wimax/wibro.

Parametrics

AG604-89G absolute maximum ratings: (1) DC-2700MHz; (2) +19.5 dBm P1dB at 900MHz; (3) +33.5 dBm OIP3 at 900 MHz; (4) 21 dB Gain at 900 MHz; (5) Single Voltage Supply; (6) Lead-free / RoHS-compliant / Green SOT-89 package; (7) Internally matched to 50Ω.

Features

AG604-89G features: (1) DC-2700MHz; (2) +19.5 dBm P1dB at 900MHz; (3) +33.5 dBm OIP3 at 900 MHz; (4) 21 dB Gain at 900MHz; (5) Single Voltage Supply; (6) Lead-free / RoHS-compliant / Green SOT-89 package; (7) Internally matched to 50Ω.


Diagrams

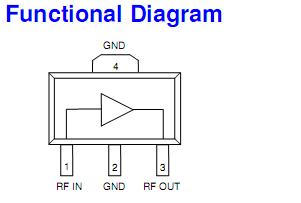

AG604-89G Functional Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AG604-89G
AG604-89G

TriQuint Semiconductor

RF Amplifier DC-6000MHz 20.5dB Gain@900MHz

Data Sheet

0-1: $1.22
1-25: $0.92
25-100: $0.70
100-250: $0.67
