Product Summary
The AM27C256-200DI is a 256 Kilobit (32 K x 8-Bit) CMOS EPROM. It is organized as 32K words by 8 bits per word, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. Products are available in windowed ceramic DIP packages, as well as plastic one time programmable (OTP) PDIP and PLCC packages. Typical power consumption is only 80 mW in active mode, and 100 μW in standby mode.
Parametrics
AM27C256-200DI absolute maximum ratings: (1)Storage Temperature OTP Products: -65°C to +125°C; (2)Ambient Temperature with Power Applied: -55°C to +125°C; (3)Voltage with Respect to VSS All pins except A9, VPP, VCC: -0.6 V to VCC + 0.6 V; (4)A9 and VPP: -0.6 V to 13.5 V; (5)VCC: -0.6 V to 7.0 V; (6)Ambient Temperature: -55°C to +125°C; (7)VCC for ± 5% devices: +4.75 V to +5.25 V; (8)VCC for ± 10% devices: +4.50 V to +5.50 V.
Features
AM27C256-200DI features: (1)Fast access time: Speed options as fast as 45 ns; (2)Low power consumption: 20 μA typical CMOS standby current; (3)JEDEC-approved pinout; (4)Single +5 V power supply; (5)±10% power supply tolerance standard; (6)100% Flashrite. programming: Typical programming time of 4 seconds; (7)Latch-up protected to 100 mA from –1 V to VCC + 1 V; (8)High noise immunity; (9)Versatile features for simple interfacing: Both CMOS and TTL input/output compatibility, Two line control functions; (10)Standard 28-pin DIP, PDIP, and 32-pin PLCC packages.

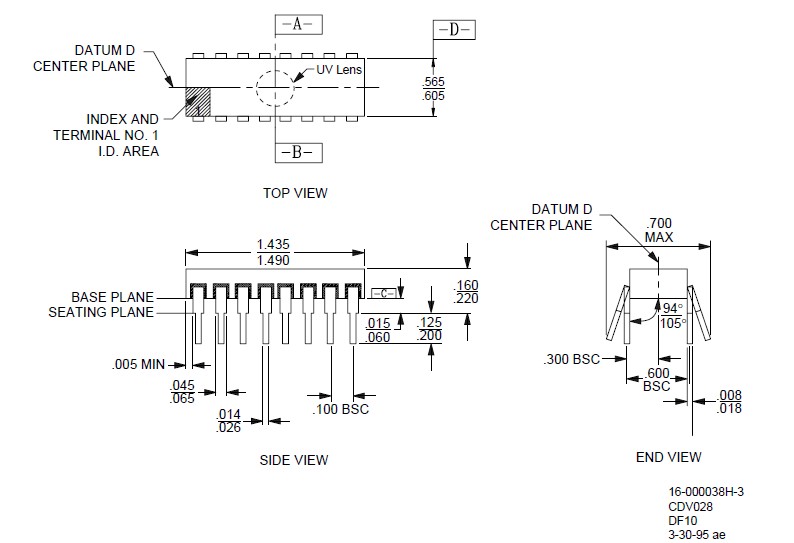

Diagrams
