Product Summary
The AM29LV320DB-70EF is a 32 megabit, 3.0 volt-only flash memory device, organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each. The AM29LV320DB-70EF is designed to be programmed in system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers. The AM29LV320DB-70EF requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations. The device offers two power-saving features. When addresses are stable for a specified amount of time, the device enters the automatic sleep mode. The system can also place the device into the standby mode. Power consumption is greatly reduced in both modes.
Parametrics
AM29LV320DB-70EF absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground, VCC: –0.5 V to +4.0 V, A9, OE#, RESET#, and WP#/ACC: –0.5 V to +12.5 V, All other pins: -0.5 V to VCC +0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29LV320DB-70EF features: (1)Sophisticated power management circuits reduce power consumed during inactive periods to nearly zero; (2)Sector Architecture: Eight 8 Kbyte sectors, Sixty-three 64 Kbyte sectors; (3)Top or bottom boot block ; (4)Manufactured on 0.23 μm process technology; (5)Compatible with JEDEC standards: Pinout and software compatible with single-power-supply flash standard; (6)Access time as fast 90 ns ; (7)Program time: 7μs/word typical utilizing Accelerate function; (8)2 mA active read current at 1 MHz; (9)10 mA active read current at 5 MHz; (10)200 nA in standby or automatic sleep mode; (11)Minimum 1 million erase cycles guaranteed per sector; (12)20 Year data retention at 125℃: Reliable operation for the life of the syste; (13)Supports Common Flash Memory Interface ; (14)(CFI); (15)Erase Suspend/Erase Resume: Suspends erase operations to allow programming in non-suspended sectors; (16)Data# Polling and Toggle Bits: Provides a software method of detecting the status of program or erase cycles; (17)Unlock Bypass Program command: Reduces overall programming time when issuing multiple program command sequences.

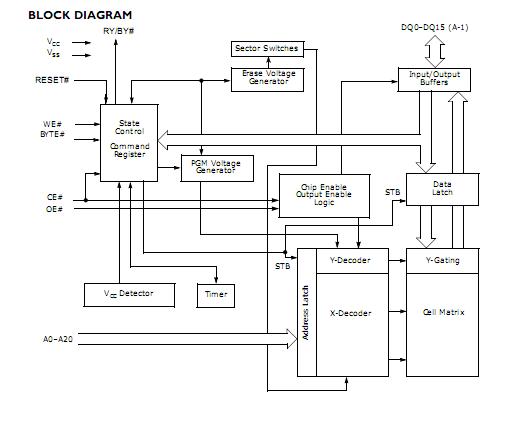

Diagrams
