Product Summary
The AMD-8131BLC is a Hyper Transport technology (referred to as link in this document) tunnel. It is developed by AMD that provides two PCI-X bridges.
Parametrics
AMD-8131BLC absolute maximum ratings: (1)VDD12[B, A]:-0.5V to 1.7V; (2)VDD18, VDDA18:-0.5V to 2.0V; (3)VDD33:-0.5V to 3.6V; (4)TCASE (Under Bias):85℃; (5)TSTORAGE:-65℃ to 150℃.
Features
AMD-8131BLC features: (1)Side A is 16 bits (input and output); side B is 8 bits ; (2)Either side may connect to the host or to a downstream HyperTransport technology compliant device; (3)Each side supports HyperTransport technology-defined reduced bit widths: 8-bit, 4-bit, and 2-bit; (4)Each side supports transfer rates of 1600, 1200, 800, and 400 mega-transfers per second; (5)Maximum bandwidth is 6.4 gigabytes per second across side A(half upstream and half downstream) and 3.2 gigabytes per second across side B; (6)Independent transfer rate and bit width selection for each side ; (7)Link disconnect protocol supported.

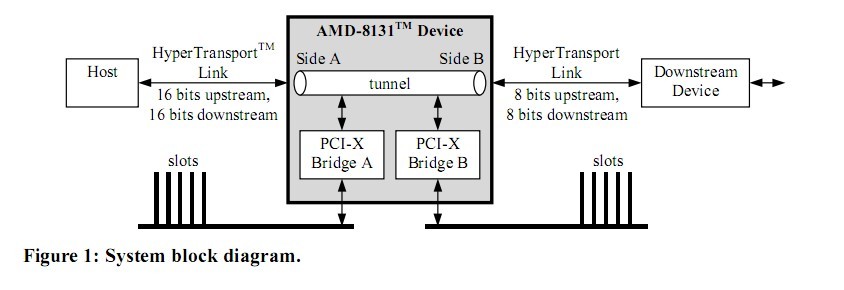

Diagrams
