Product Summary

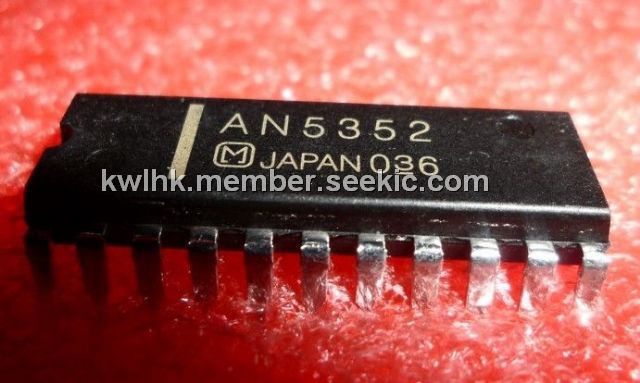

The AN5352 is a character and pattern interface IC designed for interface between the color output stage and the teletext system decoder output, or external analog input signal.
Parametrics
AN5352 absolute maximum ratings: (1)VCC: 14.4V; (2)V1-13: 0 to 14.4V; (3)V3,6,8,9-13: 0 to V1-13 V; (4)V11-13: 2 to (V1-13)-1 V; (5)V15, 18, 21-13: 0 to (V1-13)-1 V; (6)I10,14,17,20: -30 to 10mA; (7)I16,19,22: -1 to 3mA; (8)PD: 1040mW; (9)Topr: -20 to 70℃; (10)Tstg: -55 to +150℃.
Features
AN5352 features: (1)The AN5352 provides analog signal processing for character siganl input; (2)High speed switching Rise and Fall time: 35ns, delay time: 20ns; (3)Including DC controller of brightness. Contrast. R-adjustment and B-adjustment for character signal input; (4)Y amplifier linear area’s bottom: 2.0V.

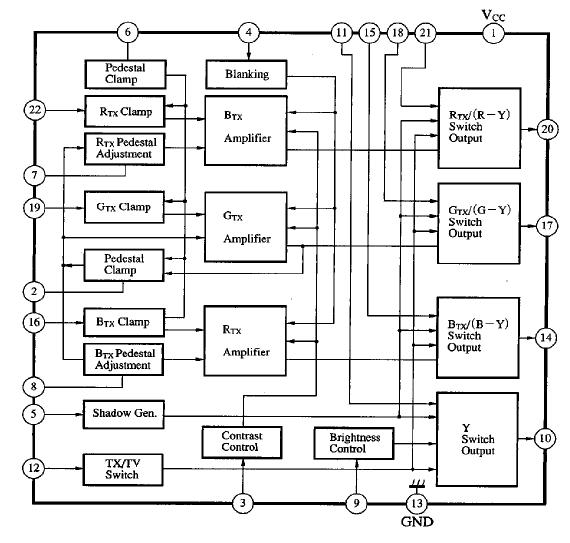

Diagrams
![]() |
