ATTINY26L-8PU

Product Summary

The ATTINY26L-8PU is a low-power CMOS 8-bit microcontroller. The Universal Serial Interface of the ATtiny26(L) allows efficient software implementation of TWI (Two-wire Serial Interface) or SM-bus interface. These features allow for highly integrated battery charger and lighting ballast applications, low-end thermostats, and firedetectors, among other applications. The ATTINY26L-8PU is supported with a full suite of program and system development tools including: Macro assemblers, program debugger/simulators, In-circuit emulators, evaluation kits.

Parametrics

ATTINY26L-8PU absolute maximum ratings: (1)Operating Temperature: -55°C to +125°C; (2)Storage Temperature: -65°C to +150°C; (3)Voltage on Any Pin with Respect to Ground: -0.5V to VCC + 0.5V; (4)Maximum Operating Voltage: 6.0 V; (5)DC Current per I/O Pin: 40.0 mA; (6)DC Current VCC and GND Pins: 200.0 mA.

Features

ATTINY26L-8PU features: (1)High-performance, Low-power AVR?8-bit Microcontroller; (2)118 Powerful Instructions Most Single Clock Cycle Execution; (3)32 x 8 General Purpose Working Registers; (4)Fully Static Operation; (5)Up to 16 MIPS Throughput at 16 MHz; (6)Data and Non-volatile Program Memory; (7)2K Bytes of In-System Programmable Program Memory Flash; (8)Endurance: 10,000 Write/Erase Cycles; (9)128 Bytes of In-System Programmable EEPROM; (10)128 Bytes Internal SRAM; (11)Programming Lock for Flash Program and EEPROM Data Security; (12)8-bit Timer/Counter with Separate Prescaler; (13)8-bit High-speed Timer with Separate Prescaler; (14)2 High Frequency PWM Outputs with Separate Output Compare Registers; (15)Non-overlapping Inverted PWM Output Pins; (16)Universal Serial Interface with Start Condition Detector; (17)10-bit ADC; (18)11 Single Ended Channels; (19)8 Differential ADC Channels; (20)7 Differential ADC Channel Pairs with Programmable Gain (1x, 20x); (21)On-chip Analog Comparator; (22)External Interrupt; (23)Pin Change Interrupt on 11 Pins; (24)Programmable Watchdog Timer with Separate On-chip Oscillator; (25)Special Microcontroller Features; (26)Low Power Idle, Noise Reduction, and Power-down Modes; (27)Power-on Reset and Programmable Brown-out Detection; (28)External and Internal Interrupt Sources; (29)In-System Programmable via SPI Port; (30)Internal Calibrated RC Oscillator.

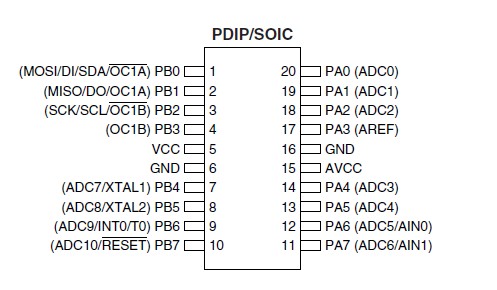

Diagrams
