Product Summary

The B39182 - B7822 - C710 - S09 is a low-loss filters for mobile communication.

Parametrics

B39182-B7822-C710-S09 absolute maximum ratings: (1)Operable temperature range: – 10 to + 80 °C; (2)Storage temperature range: – 40 to + 85 °C; (3)DC voltage: 3 V; (4)ESD voltage: 50 V; (5)Input power at GSM850, GSM900: 15 dBm; (6)Input power at GSM1800, GSM1900: 12 dBm.

Features

B39182-B7822-C710-S09 features: (1)Low-loss RF filter for mobile telephone PCN systems, receive path; (2)High selectivity up to 6 GHz; (3)Low amplitude ripple; (4)Usable passband 75 MHz; (5)Suitable for GPRS class 1 to 12; (6)Package for Surface Mount Technology (SMT).

Diagrams

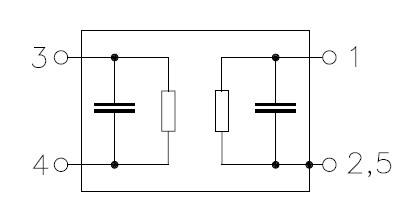

B39182-B7822-C710-S09 pin connection
