Product Summary
The BGA420E6327 is a Si-MMIC-Amplifier.
Parametrics
BGA420E6327 absolute maximum ratings: (1)Device current ID: 15 mA; (2)Device voltage VD: 6 V; (3)Total power dissipation TS = 110 °C Ptot: 90 mW; (4)Junction temperature Tj: 150 °C; (5)Ambient temperature TA: -65 to 150°C; (6)Storage temperature Tstg: -65 to 150°C.
Features
BGA420E6327 features: (1)Cascadable 50 Ω-gain block; (2)Unconditionally stable; (3)Gain |S21|2 = 13 dB at 1.8 GHz, IP3out = +13 dBm at 1.8 GHz (VD = 3 V, ID = typ. 6.7 mA); (4)Noise figure NF = 2.2 dB at 1.8 GHz; (5)Reverse isolation > 28 dB and return loss IN / OUT > 12 dB at 1.8 GHz; (6)Pb-free (RoHS compliant)package.

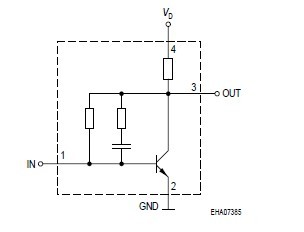

Diagrams
