Product Summary

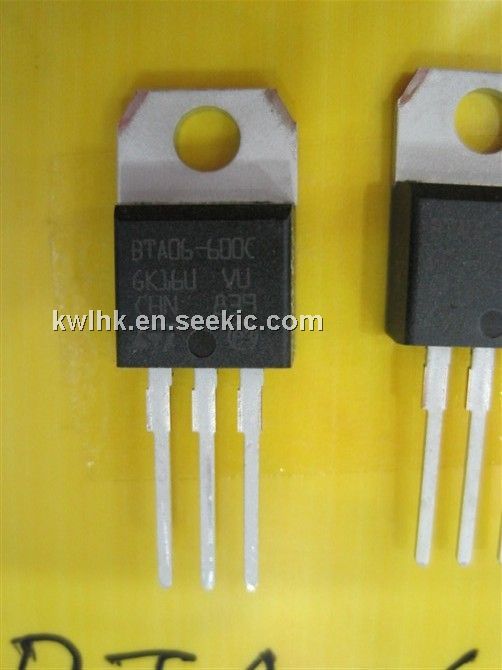

The bta06-600c is a 6A tirac. The bta06-600c is suitable for AC switching operations. Applications of the bta06-600c include: tatic relays, heating regulation, induction motor starting circuitslight dimmers, motor speed controllers.
Parametrics
bta06-600c absolute maximum ratings: (1) Non repetitive surge peak on-state current (full cycle, Tj initial = 25°C) ITSM: 60A: (t=20 ms, F=50Hz) ,63A (t=16.7ms, F=60Hz) ; (2) I2T Value for fusing: 21A2s; (3) Critical rate of rise of on-state current IG=2xIGT , tr≤100ns: 50A/μs; (4) Peak gate current IGM: 4A (tp=20μs, Tj=125°C) ; (5) Average gate power dissipation, Tj=125°C: 1W; (6) Storage junction temperature range Tstg: -40 to +150°C; (7) Operating junction temperature range: -40 to +125°C.
Features
bta06-600c features: (1) IT(RMS) : 6A; (2) VDRM/VRRM: 600 and 800V; (3) IG (Q1): 5 to 50mA.

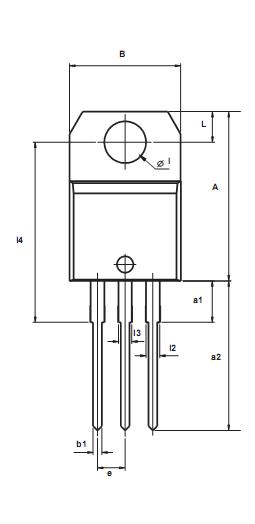

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTA06-600C |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BTA06-600CRG |
STMicroelectronics |
Triacs 6 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
|
BTA06-600CWRG |
STMicroelectronics |
Triacs 6 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
