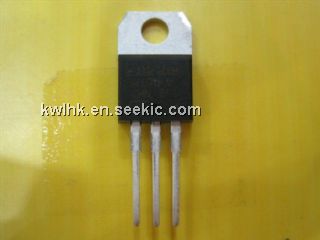

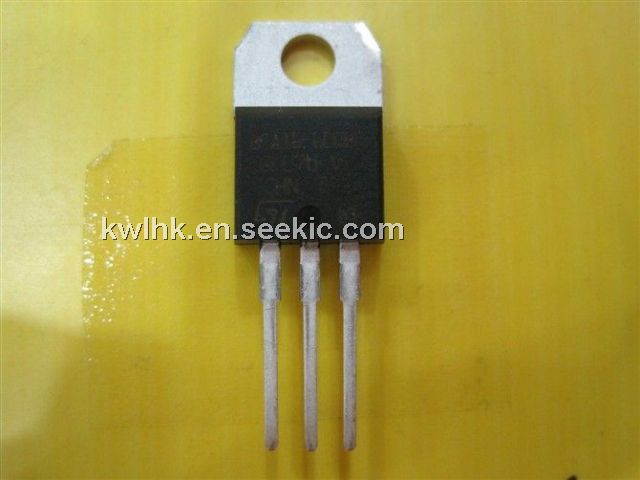

Product Summary

The bta16-600b is a 16A triac. The is suitable for general purpose AC switching. The bta16-600b can be used as an ON/OFF function. Applications of the bta16-600b include: static relays, heating regulation, induction motor stating circuits, phase control operation light dimmers and motor speed controllers.

Parametrics

bta16-600b absolute maximum ratings: (1) storage junction temperature range Tstg: -40 to +150°C; (2) Operating junction temperature range Tj: -40 to +125°C; (3) Repetitive peak off-state voltage VDRM: 600 and 800V (Tj=25°C) ; (4) Repetitive peak reverse voltage VRRM: 600 and 800V (Tj=25°C) ; (5) RMS on-state current (full sine wave) IT (RMS) : 16A; (6) Peak gate current: 4A; (7) average gate power dissipation TJ=125°C: 1W.

Features

bta16-600b features: (1) IT(RMS) : 16A; (2) VDRM/VRRM: 600 and 800V; (3) VTM≤1.55V.

Diagrams

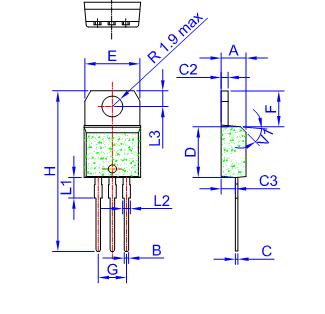

BTA16-600B dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTA16-600B
BTA16-600B
Other

Data Sheet
Negotiable
BTA16-600BRG
BTA16-600BRG
STMicroelectronics
Triacs 16 Amp 600 Volt
Data Sheet
0-1: $0.85
1-10: $0.76
10-100: $0.70
100-250: $0.62
BTA16-600BW3G
BTA16-600BW3G
ON Semiconductor
Triacs 16A 50mA 600V IGT 3 QUAD INTERNL ISLTD
Data Sheet
0-1: $0.82
1-25: $0.80
25-100: $0.64
100-250: $0.57
BTA16-600BWRG
BTA16-600BWRG
STMicroelectronics
Triacs 16 Amp 600 Volt
Data Sheet
0-1: $0.71
1-10: $0.63
10-100: $0.58
100-250: $0.51
BTA16-600BW
BTA16-600BW

TRIAC 600V 16A TO-220AB
Data Sheet
Negotiable
