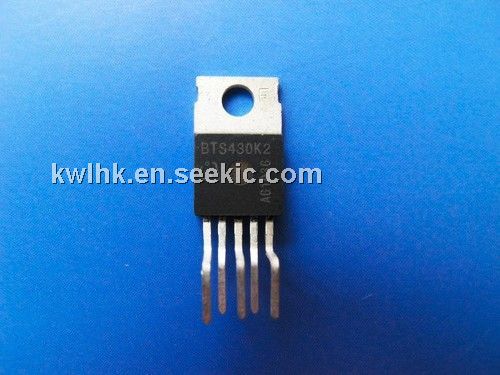

Product Summary

The BTS430K2 is a smart high side power switch. It is widely used in uc compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads, all types of resistive, inductive and capacitve loads, most suitable for loads with high inrush currents, so as lamps, replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS430K2 absolute maximum ratings: (1)Supply voltage,Vbb: 43V; (2)Load dump protection, VLoad dump: 50V; (3)Load current, IL: self-limited A; (4)Operating temperature range, Tj: -40 to +150℃; (5)Storage temperature range, Tstg: -55 to+150℃; (6)Power dissipation (DC), TC ≤ 25℃, Ptot: 75W.

Features

BTS430K2 features: (1)Clamp of negative voltage at output; (2)Short-circuit protection; (3)Current limitation; (4)Thermal shutdown; (5)Diagnostic feedback; (6)Open load detection in ON-state; (7)CMOS compatible input; (8)Electrostatic Discharge (ESD)protection; (9)Loss of ground and loss of Vbb protection; (10)Reverse battery protection; (11)Undervoltage and overvoltage shutdown with auto-restart and hysteresis.

Diagrams

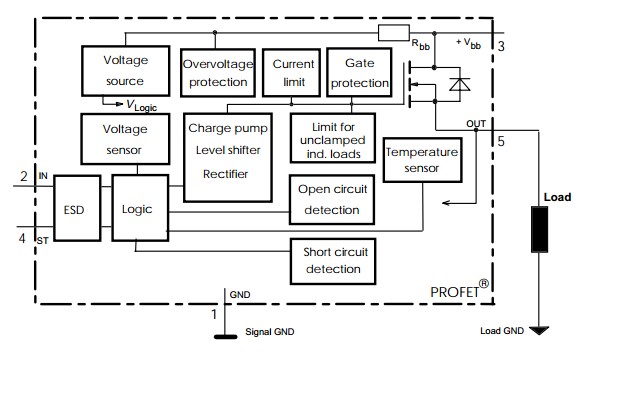

BTS430K2 block diagram
