Product Summary

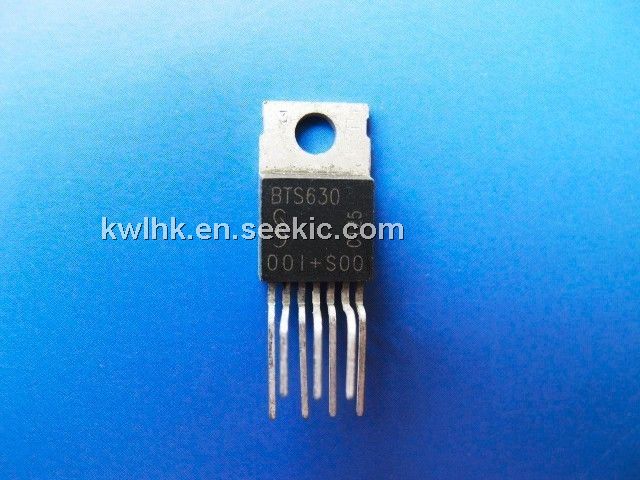

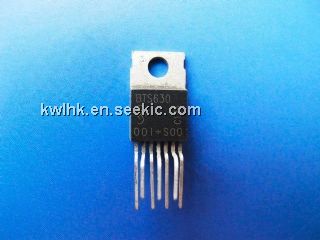

The BTS630 is a PWM Power Unit. The device allows continuous power control for lamps, LEDs or inductive loads.
Parametrics
BTS630 absolute maximum ratings: (1)Active overvoltage prodection: >40 V; (2)Short circuit current ISC: self-limited; (3)Input current (DC)ICt: 2 mA; (4)Pin1 (Ct)and pin19 (VC)IVC: 2 mA; (5)Operating temperature range Tj: -40 to +150°C; (6)Storage temperature range Tstg: -50 to +150°C; (7)Power dissipation Ta=25°C Ptot: 75 W; (8)Thermal resistance chip-case Rth JC: ≤ 1.67 K/W.
Features
BTS630 features: (1)Highside switch; (2)Overtemperatur protection; (3)Short circuit / overload protection through pulse widt reduction and overload shutdown; (4)Load dump protection; (5)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (6)Reverse battery protection; (7)Timing frequency adjustable; (8)Controlled switching rise and fall times; (9)Maximum current internally limited; (10)Protection against loss of GND; (11)Electrostatic discharge (ESD)protection; (12)Package: TO220/7 and TO220/7 E3128.

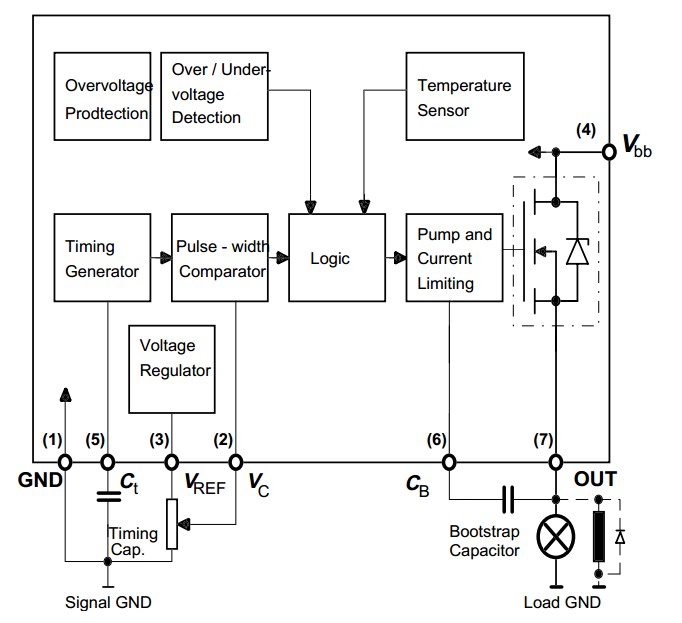

Diagrams
