Product Summary

The BTS7960P is a fully integrated high current half bridge for motor drive applications. It is part of the Novalith IC TM family containing one p-channel highside MOSFET and one n-channel lowside MOSFET with an integrated driver IC in one package. Due to the p-channel highside switch the need for a charge pump is eliminated thus minimizing EMI. The BTS7960P provides a cost optimized solution for protected high current PWM motor drives with very low board space consumption.

Parametrics

BTS7960P absolute maximum ratings: (1)Supply voltage: -0.3 to 45 V; (2)Logic Input Voltage: -0.3 to 5.3 V; (3)HS/LS continuous drain current: -40 to 40 A at TC < 85℃, switch active; (4)HS pulsed drain current: -60 to 60 A at TC < 85℃, tpulse = 10ms; (5)LS pulsed drain current: -60 to 60 A at TC < 85℃, tpulse = 10ms; (6)Voltage at SR pin: -0.3 to 1.0 V; (7)Voltage between VS and IS pin: -0.3 to 45 V; (8)Voltage at IS pin: -20 to 45 V; (9)Junction temperature: -40 to 150 ℃; (10)Storage temperature: -55 to 150 ℃.

Features

BTS7960P features: (1)Path resistance of typ. 16 mΩ @ 25 ℃; (2)Low quiescent current of typ. 7 μA @ 25 ℃; (3)PWM capability of up to 25 kHz combined with active freewheeling; (4)Switched mode current limitation for reduced power dissipation in overcurrent; (5)Current limitation level of 43 A typ.; (6)Status flag diagnosis with current sense capability; (7)Overtemperature shut down with latch behaviour; (8)Overvoltage lock out; (9)Undervoltage shut down; (10)Driver circuit with logic level inputs; (11)Adjustable slew rates for optimized EMI.

Diagrams

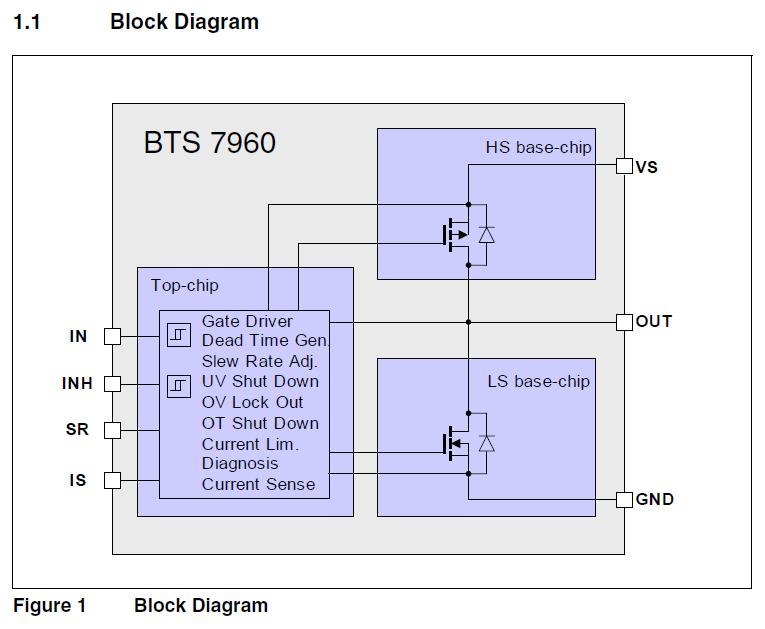

 BTS7960P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

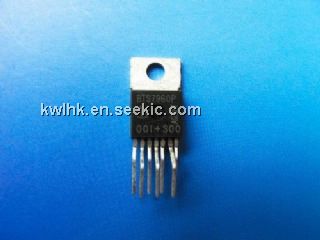

BTS7960P
BTS7960P


IC NOVALITHIC 1/2 BRIDGE TO220-7

Data Sheet

Negotiable
