Product Summary

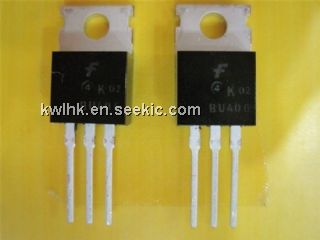

The bu406 is a high voltage, high speed transistor for horizontaldeflection output stage of TVs and CTVs circuits.

Parametrics

bu406 absolute maximum ratings: (1) Collector-emitter voltage VCEO: 200V; (2) Collector-emitter voltage VCEV: 400V; (3) Collector-base voltage VCBO: 400V; (5) Collector current-conthlnuous-peak Ic: 7A; (6) Base-current-continous IB:4A; (7) Total power dissipation@Tc=25°C derate above 25°C PD: 60W, 0.48W/°C; (8) Operation and storage junction temperature range: -65 to +150°C.

Features

bu406 features: (1) Collector-Emitter sustaining voltage-VCEV=400V; (2) Low saturation voltage VCE (sat)=1.0V (Max) @ Ic=0.5A; (3) Fast switching speed:tf=0.75μs (Max) .

Diagrams

bu406 dimension
