Product Summary

The CRCW06032003FRT1 is a Lead (Pb)-bearing thick film, rectangular chip resistor.

Parametrics

CRCW06032003FRT1 absolute maximum ratings: (1)POWER RATING: 0.10 W; (2)limiting element voltage: 75 V; (3)temperature coefficient: ±100 ppm/K; (4)tolerance: ± 1%; (5)resistance range: 1R0 - 10M.

Features

CRCW06032003FRT1 features: (1)High volume product suitable for commercial and special applications; (2)Excellent stability; (3)Lead (Pb)-bearing solder contacts on Ni barrier layer; (4)Metal glaze on high quality ceramic; (5)Protective overglaze.

Diagrams

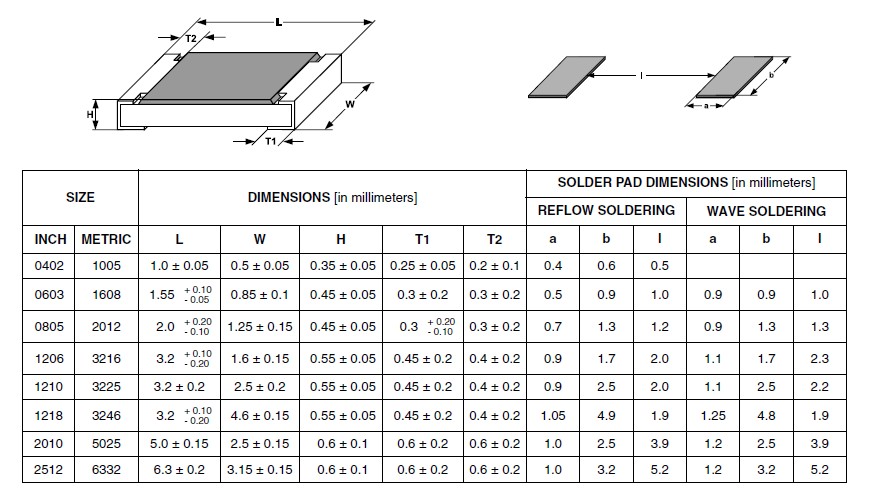

CRCW06032003FRT1 dimension figure
