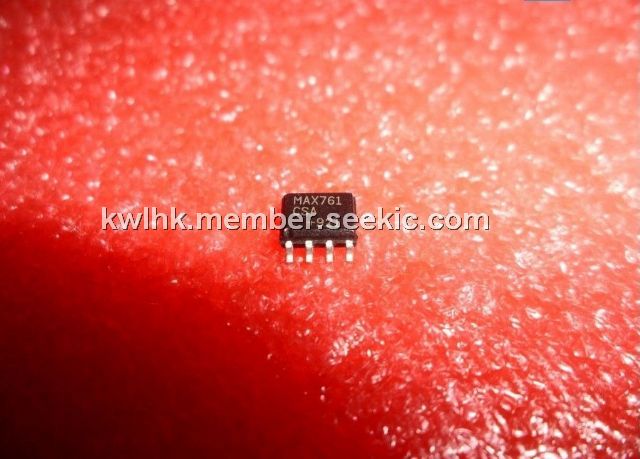

MAX761CSA

Adjustable, High-Efficiency, Low IQ, Step-Up DC-DC Converter, 8-SOIC, 300kHz Switching Frequency

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~50.00

PartNumber:: MAX761CSA

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. harry's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-07

From Other Seller

Part Number:MAX761CSA
US $0.10 - 50.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

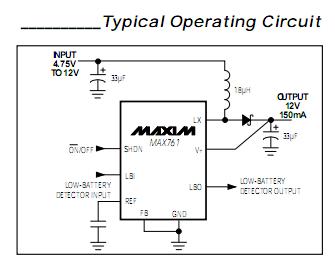

The MAX761CSA is a Step-Up DC-DC Converter. It provides high efficiency over a wide range of load currents, delivering up to 150mA. A unique, current-limited pulse-frequency-modulated (PFM) control scheme gives the MAX761CSA the benefits of pulse-width-modulated (PWM) converters (high efficiency with heavy loads), while using less than 110μA of supply current (vs. 2mA to 10mA for PWM converters). The result is high efficiency over a wide range of loads. The applications of the MAX761CSA are Flash Memory Programming, PCMCIA Cards, Battery-Powered Applications, High-Efficiency DC-DC Converters.

Parametrics

MAX761CSA absolute maximum ratings: (1)Supply Voltage V+ to GND:-0.3V to 17V; (2)REF, LBO, LBI, SHDN, FB:-0.3V to (V+ + 0.3V); (3)LX:-0.3V to 17V; (4)LX Peak Current:1.5A; (5)LBO Current:5mA; (6)Continuous Power Dissipation:471mW; (7)Operating Temperature Ranges:-40℃ to +85℃; (8)Junction Temperatures:+150℃; (9)Storage Temperature Range:-65℃ to +160℃; (10)Lead Temperature (soldering, 10sec):+300℃.

Features

MAX761CSA features: (1)High Efficiency for a Wide Range of Load Currents; (2)12V/150mA Flash Memory Programming Supply; (3)110μA Max Supply Current; (4)5μA Max Shutdown Supply Current; (5)2V to 16.5V Input Voltage Range; (6)12V (MAX761), 15V (MAX762) or Adjustable Output; (7)Current-Limited PFM Control Scheme; (8)300kHz Switching Frequency; (9)Internal, 1A, N-Channel Power FET; (10)LBI/LBO Low-Battery Comparator.
