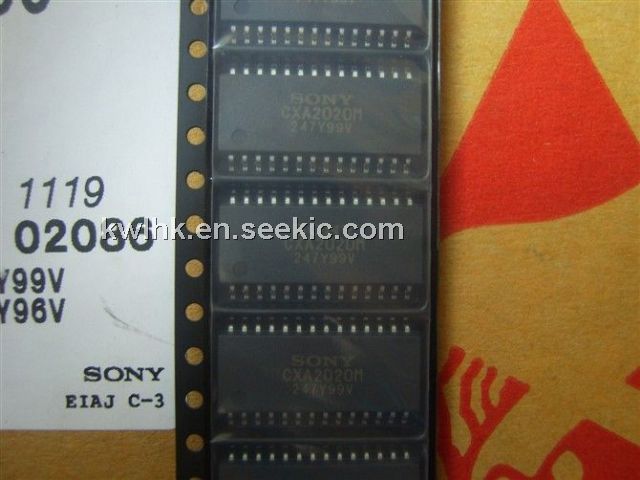

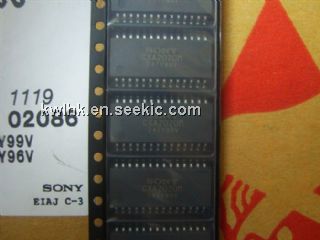

CXA2020M

CXA2020M, decoder, 10 V, 10 mA, 1kHz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.42~3.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.12 / Piece
500 ~ 1000 :	1.95 / Piece
1000 ~ 1500 :	0.42 / Piece

PartNumber:: CXA2020M

Brand:: Sony Corporation - SONY | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-25

From Other Seller

Part Number:CXA2020M
US $0.42 - 3.12
Quantity:

piece

Product Summary

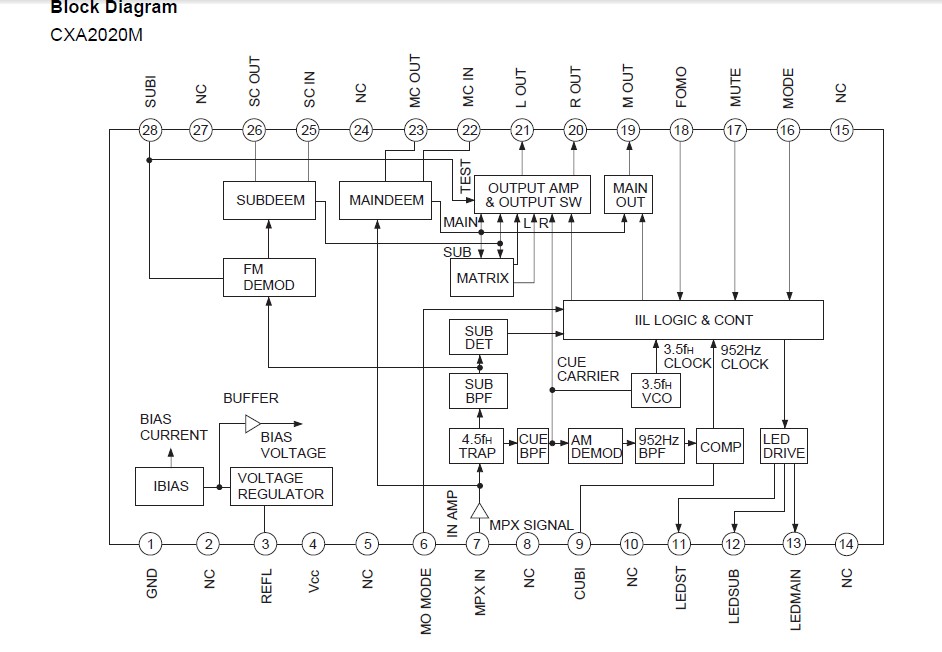

The CXA2020M is a bipolar IC designed as EIAJ TV sound multiplexing decoder, provides various functions including sound multiplexing demodulation, broadcast mode identification (stereo/bilingual discrimination display), mode display, and muting. Applications are (1)Color TVs; (2)Hi-Fi VCRs.

Parametrics

CXA2020M absolute maximum ratings: (1)Supply voltage VCC 10 V; (2)Input signal (Pin 6)Vis 0.6 Vp-p; (3)Control voltage (Pins 5, 12, 13, 14)Vic VCC V; (4)Operating temperature Topr –20 to +75 °C; (5)Storage temperature Tstg –65 to +150 °C; (6)Allowable power dissipation PD (A2020M)1000 mW; (7)LED drive current ILED 10 mA.

Features

CXA2020M features: (1)Adjustment free of filter.; (2)High frequency stereo separation improved.; (3)An internal active filter greatly reduces the external parts.; (4)Use of the countdown method for broadcast mode identification eliminates the necessity of adjusting the identification system (Cue oscillator).; (5)Output level: 520mVrms (1kHz, monaural, 100%).; (6)Internal filter eliminates interference from digital facsimile signals.; (7)The discrimination time needed to shift from multiplexing sound to monaural sound is reduced.; (8)Forced monaural mode can be set to operate only for stereo broadcasts or for stereo/bilingual broadcasts.
