Product Summary

The CY2273APVC-1 is a clock synthesizer/driver for a Pentium, Pentium II, Cyrix, or AMD processor-based PC using Intels 82430TX, 82440LX, ALI Aladdin IV or Aladdin IV+ chipsets. The CY2273APVC-1 outputs are designed for low EMI emissions. Controlled rise and fall times, unique output driver circuits and factory-EPROM programmable output drive and slew-rate enable optimal configurations for EMI control.

Parametrics

CY2273APVC-1 absolute maximum ratings: (1)Supply Voltage: –0.5 to +7.0V; (2)Input Voltage: –0.5V to VDD+0.5; (3)Storage Temperature (Non-Condensing): –65°C to +150°C; (4)Max. Soldering Temperature (10 sec)+260°C; (5)Junction Temperature: +150°C; (6)Package Power Dissipation: 1W; (7)Static Discharge Voltage: >2000V.

Features

CY2273APVC-1 features: (1)Mixed 2.5V and 3.3V operation; (2)Complete clock solution for Pentium, Pentium II, Cyrix, and AMD processor-based motherboards: Four CPU clocks at 2.5V or 3.3V; Up to twelve 3.3V SDRAM clocks; Seven synchronous PCI clocks, one free-running; One 3.3V 48 MHz USB clock; One 2.5V IOAPIC clock (-3 option only); Two AGP clocks at 60 or 66.6MHz (-2 option only); One 3.3V Ref. clock at 14.318 MHz.; (3)I 2 C™ Serial Configuration Interface; (4)Factory-EPROM programmable output drive and slew rate for EMI customization; (5)Factory-EPROM programmable CPU clock frequencies for custom configurations; (6)Power-down, CPU stop and PCI stop pins; (7)Available in space-saving 48-pin SSOP package.

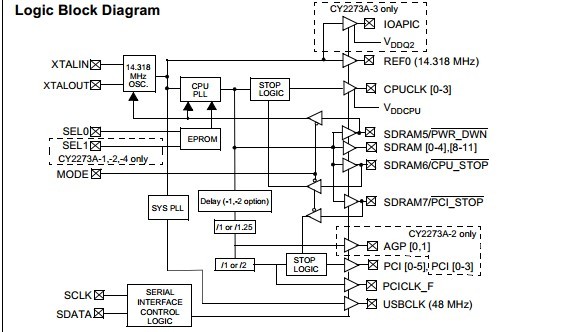

Diagrams

CY2273APVC-1 pin connection
