CY62148VLL-70ZI

CY62148VLL-70ZI, high-performance CMOS static RAM, –0.5 V to +4.6 V, 200 mA, TSOP, Cypress Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.26~3.59 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.59 / Piece
500 ~ 1000 :	3.41 / Piece
1000 ~ 1500 :	3.26 / Piece

PartNumber:: CY62148VLL-70ZI

Brand:: Cypress Semiconductor - Cypress | Pack: TSOP | D/C: 03+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-17

From Other Seller

Part Number:CY62148VLL-70ZI
US $3.26 - 3.59
Quantity:

piece

Product Summary

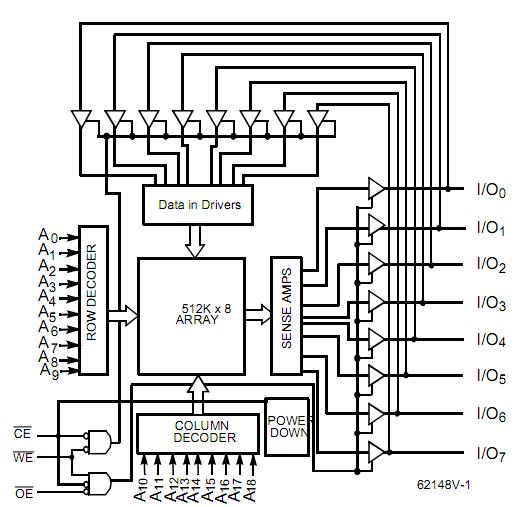

The CY62148VLL-70ZI is a high-performance CMOS static RAM. The CY62148VLL-70ZI is organized as 524,288 words by 8 bits. The CY62148VLL-70ZI features advanced circuit design to provide ultra-low active current. This is ideal for providing More Battery Life in portable applications such as cellular telephones. The CY62148VLL-70ZI also has an automatic power-down feature that significantly reduces power consumption by 99% when addresses are not toggling.

Parametrics

CY62148VLL-70ZI absolute maximum ratings: (1)Storage Temperature: –65 to +150 ℃; (2)Ambient Temperature with Power Applied: 55 to +125 ℃; (3)Supply Voltage to Ground Potential: –0.5 V to +4.6 V; (4)DC Voltage Applied to Outputs in High Z State: –0.5 V to VCC + 0.5 V; (5)DC Input Voltage: –0.5 V to VCC + 0.5 V; (6)Output Current into Outputs (LOW): 20 mA; (7)Static Discharge Voltage: ＞2001V; (8)Latch-Up Current: ＞200 mA.

Features

CY62148VLL-70ZI features: (1)Low voltage range: 2.7 V to 3.6 V; (2)Ultra low active power; (3)Low standby power; (4)TTL-compatible inputs and outputs; (5)Automatic power-down when deselected; (6)CMOS for optimum speed/power.
