Product Summary
The CY74FCT162373ATPAC is a 16-bit D-type latches designed for use in bus applications requiring high speed and low power. The CY74FCT162373ATPAC can be used as two independent 8-bit latches or as a single 16-bit latch by connecting the Output Enable (OE) and Latch (LE) inputs. Flow-through pinout and small shrink packaging aid in simplifying board layout. The output buffers are designed with power-off disable feature that allows live insertion of boards. The CY74FCT162373ATPAC is ideally suited for driving high-capacitance loads and low-impedance backplanes.
Parametrics
CY74FCT162373ATPAC absolute maximum ratings: (1)Storage Temperature: -55°C to +125°C; (2)Ambient Temperature with Power Applied: -55°C to +125°C; (3)DC Input Voltage: -0.5V to +7.0V; (4)DC Output Voltage: -0.5V to +7.0V; (5)DC Output Current: -60 to +120 mA; (6)Power Dissipation: 1.0W; (7)Static Discharge Voltage: >2001V.
Features
CY74FCT162373ATPAC features: (1)FCT-E speed at 3.4 ns; (2)Power-off disable outputs permits live insertion; (3)Edge-rate control circuitry for significantly improved noise characteristics; (4)Typical output skew < 250 ps; (5)ESD > 2000V; (6)TSSOP (19.6-mil pitch)and SSOP (25-mil pitch)packages; (7)Industrial temperature range of -40°C to +85°C; (8)VCC = 5V ± 10%.

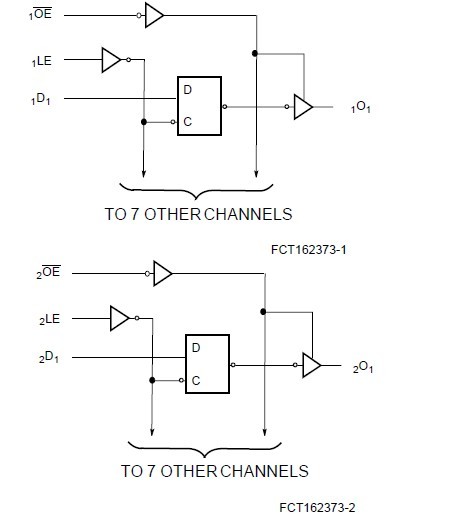

Diagrams
