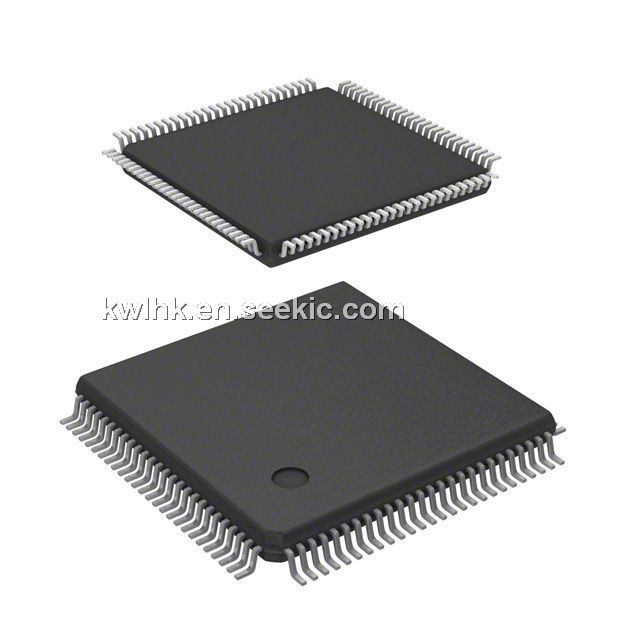

Product Summary
The CY7C1347B-100AC is a 3.3V, 128K by 36 synchronous-pipelined cache SRAM. The CY7C1347B-100AC is designed to support zero wait state secondary cache with minimal glue logic. The CY7C1347B-100AC pins can operate at either the 2.5V or the 3.3V level. The I/O pins of the CY7C1347B-100AC are 3.3V tolerant when VDDQ=2.5V. All synchronous inputs pass through input registers controlled by the rising edge of the clock. All data outputs pass through output registers controlled by the rising edge of the clock. Max-imum access delay from the clock rise is 4.2 ns (166-MHz device). The CY7C1347B-100AC supports either the interleaved burst sequence used by the Intel Pentium processor or a linear burst sequence used by processors such as the PowerPC.
Parametrics
CY7C1347B-100AC absolute maximum ratings: (1)Storage Temperature: –65 to +150 ℃; (2)Ambient Temperature with Power Applied: –55 to +125 ℃; (3)Supply Voltage on VCC to Relative GND[2]: –0.5 V to +4.6 V; (4)DC Voltage Applied to Outputs[2] in High Z State: –0.5 V to VDD+0.5 V; (5)DC Input Voltage[2]: –0.5 V to VDD+0.5 V; (6)Current into Outputs (LOW): 20 mA; (7)Static Discharge Voltage: ＞2001V; (8)Latch-Up Current: ＞200 mA.
Features
CY7C1347B-100AC features: (1)Supports 100-MHz bus for Pentium and PowerPC; (2)Fully registered inputs and outputs for pipelined operation; (3)128K × 32 common I/O architecture; (4)3.3V core power supply; (5)2.5V / 3.3V I/O operation; (6)Fast clock-to-output times: 3.5 ns; (7)User-selectable burst counter supporting Intel Pentium interleaved or linear burst sequences; (8)Separate processor and controller address strobes; (9)Synchronous self-timed writes; (10)Asynchronous output enable; (11)JEDEC-standard 100-pin TQFP pinout; (12)“ZZ” Sleep Mode and Stop Clock options; (13)Available in industrial and commercial temperature ranges.

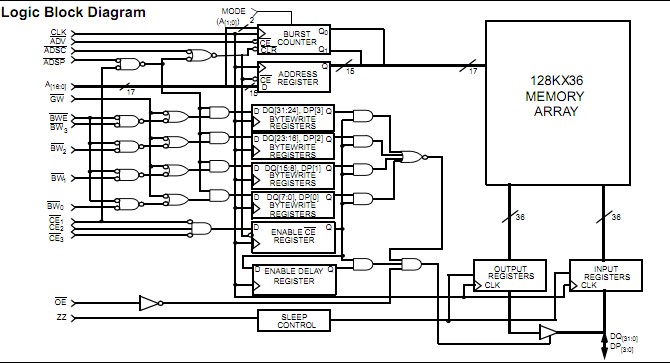

Diagrams
