CY7C1399B-15ZXC

CY7C1399B-15ZXC, high-performance CMOS Static RAM, –0.5 V to +4.6 V, 20 mA, TSOP, Cypress Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.47~3.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.80 / Piece
500 ~ 1000 :	3.65 / Piece
1000 ~ 1500 :	3.47 / Piece

PartNumber:: CY7C1399B-15ZXC

Brand:: Cypress Semiconductor - Cypress | Pack: TSOP | D/C: 03+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-27

From Other Seller

Part Number:CY7C1399B-15ZXC
US $3.47 - 3.80
Quantity:

piece

Product Summary

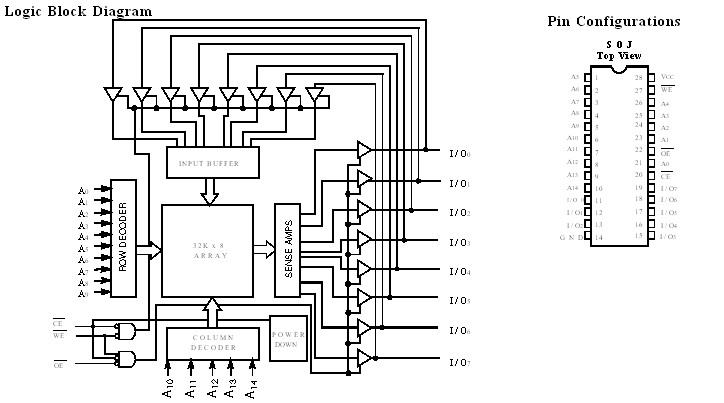

The CY7C1399B-15ZXC is a high-performance CMOS Static RAM. The CY7C1399B-15ZXC is organized as 32,768 words by 8 bits. Easy memory expansion of the CY7C1399B-15ZXC is provided by an active LOW Chip Enable (CE) and three-state drivers. The CY7C1399B-15ZXC has an automatic power-down feature, reducing the power consumption by 95% when deselected. Writing to the CY7C1399B-15ZXC is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the address pins.

Parametrics

CY7C1399B-15ZXC absolute maximum ratings: (1)Storage Temperature: –65 to +150 ℃; (2)Ambient Temperature with Power Applied: –55 to +125 ℃; (3)Supply Voltage on VCC to Relative GND[2]: –0.5 V to +4.6 V; (4)DC Voltage Applied to Outputs[2] in High Z State: –0.5 V to VDDQ+0.5 V; (5)DC Input Voltage[2]: –0.5 V to VDD+0.5 V; (6)Current into Outputs (LOW): 20 mA; (7)Static Discharge Voltage: ＞2001V; (8)Latch-Up Current: ＞200 mA.

Features

CY7C1399B-15ZXC features: (1)Single 3.3V power supply; (2)Ideal for low-voltage cache memory applications; (3)High speed: 12/15 ns; (4)Low active power: 216 mW (max.); (5)Low-power alpha immune 6T cell; (6)Plastic SOJ and TSOP packaging.
