CY7C199-15VC

CY7C199-15VC, high-performance CMOS Static RAM, –0.5 V to +7.0 V, 20 mA, SOJ, Cypress Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.44~2.77 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	2.77 / Piece
500 ~ 1000 :	2.59 / Piece
1000 ~ 1500 :	2.44 / Piece

PartNumber:: CY7C199-15VC

Brand:: Cypress Semiconductor - Cypress | Pack: SOJ | D/C: 00+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-28

From Other Seller

Part Number:CY7C199-15VC
US $2.44 - 2.77
Quantity:

piece

Product Summary

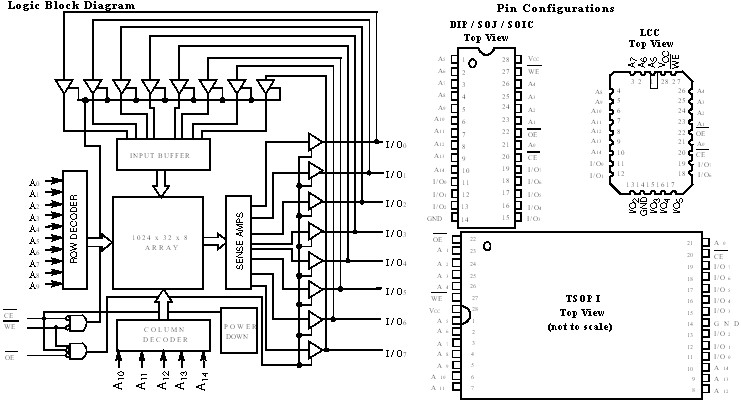

The CY7C199-15VC is a high-performance CMOS Static RAM. The CY7C199-15VC is organized as 32,768 words by 8 bits. Easy memory expansion of the CY7C199-15VC is provided by an active LOW Chip Enable (CE), an active HIGH chip enable, an active LOW output enable and three-state drivers. The CY7C199-15VC has an automatic power-down feature, reducing the power consumption by 81% when deselected. The CY7C199-15VC is in a standard 300-mil-wide DIP, SOJ, or SOIC package.

Parametrics

CY7C199-15VC absolute maximum ratings: (1)TSTG, Storage Temperature: –65 to +150 ℃; (2)TAMB, Ambient Temperature with Power Applied: –55 to +125 ℃VCC, Core Supply Voltage Relative to VSS: –0.5 to +7.0 V; (3)VIN, VOUT, DC Voltage Applied to any Pin Relative to VSS: –0.5 to VCC + 0.5 V; (4)IOUT, Output Short–Circuit Current: 20 mA; (5)VESD, Static Discharge Voltage: ＞2001 V; (6)ILU, Latch–up Current: ＞200 mA.

Features

CY7C199-15VC features: (1)High speed: 10 ns; (2)Fast tdoe; (3)CMOS for optimum speed/power; (4)Low active power: 467 mW; (5)Low standby power: 0.275 mW; (6)2V data retention; (7)Easy menory expansion with CE and OE options; (8)TTL-compatible inputs and outputs; (9)Automatic power-down when deselected.
