Product Summary
The D71088C-10 is a 4-20mA Transmitter. The D71088C-10 is designed to provide serial data communications in mirocomputer systems. The CPU of the D71088C-10 uses it as a peripheral I/O device and programs it to communicate in synchronous or asynchronous serial data transmission protocols, including IBM bisync. The USART of the D71088C-10 receives serial data sreams and converts them into parallel data characters for the CPU, while receiving serial data, the USART can also accept parallel data from the CPU, convert it to serial, and tansmit the data.
Parametrics
D71088C-10 absolute maximum ratings: (1)Power supply voltage, VDD: -0.5 to +7.0 V; (2)Input voltage, VI: -0.5 to +0.3 V; (3)Output voltate, VO: -0.5 to VDD+0.3 V; (4)Operating temperature, TOPT: -40 to 85 ℃; (5)Sorage temperature, TSTG: -65 to 150 ℃; (6)Power dissipation, PDmax: 1.0 W.
Features
D71088C-10 features: (1)Synchronous operation one or two SYNC characters; (2)Asynchronous operation clock rate: ×1, ×16, or ×64; (3)Baud rate: DC-240 kbit/s at ×1 clock; (4)Full duplex, double-buffered transmitter/receiver; (5)Error detection: parity, overrun, and framing; (6)Five-to eight-bit characters; (7)Low-power standby mode; (8)Compatible with standard microcomputers; (9)Functionally equivalent to and can replace the μPD8251AF; (10)CMOS technilogy; (11)Single +5 V ±10 % power supply; (12)Industrial temperiture range: -40 to 85 ℃; (13)28-pin plastic DIP or PLCC or 44-pin plastic QFP; (14)8 MHZ and 10 MHZ.

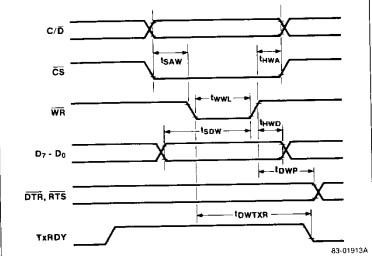

Diagrams
